Grain Hopper Cones – Bridgeview Manufacturing

Q: Why do some buyers choose Bridgeview hopper cones over competing options?

At Bridgeview, we’ve engineered a system that’s highly adaptable, whether it’s being retrofitted to an older bin or structure or you’re setting up a brand-new system. Our bolt-together design eliminates shipping headaches, while our range of configurations gives you the flexibility you need for your specific operation.

Q: How do hopper cones fit into a larger grain handling system?

Grain handling systems are often tasked with more than just bulk storage. Hopper cones make grain easier to move which is ideal for cooling, drying, blending, and surge bin duties. They tie in easily with augers or conveyors which simplifies turning and aeration. With capacities up to 20000 bushels, they offer valuable bulk storage while maintaining flexibility to deal with inconsistencies in grain grade and moisture levels. For farms planning a more active handling setup, they can improve grain flow, reduce manual cleanout, and create a more practical connection between storage and loadout.

Q: Why choose a hopper cone instead of a flat-bottom bin?

Hopper cones offer faster unloading, less manual cleanout, and easier integration with handling equipment than flat-bottom storage. They can also provide greater flexibility in managing tough grain and support a more active grain-handling system overall. For many farms, that added convenience and control is what justifies the investment.

Q: What’s involved in installing a hopper cone?

Installation planning should account for lifting equipment, site preparation, foundation readiness, and crew experience. Timelines vary depending on cone size, site conditions, and the project’s staging. The hopper cone package consists of a package of legs, a package of top ring sections, and a crate containing the galvanized pie sheets, X-braces, and other hardware. Once delivered, these packages should be stored under cover until assembled. Other than appropriate lifting equipment (depending on the size of the bin/cone package), no other specialty tools are required to assemble the cone.

Q: Can I assemble the hopper cone myself?

Yes, Bridgeview customers have assembled their own bin and cone packages. Instructions are provided with each package and other than arranging for lifting equipment, no special tools are required. Assembly instructions must be adhered to diligently for warranty purposes. Any unauthorized modifications such as relocated or missing X-braces will void the warranty.

Q: Do you provide bin setup services?

The bolt-together nature of Bridgeview hopper cones allows shipping virtually anywhere. As such, customers typically source their installation services locally. Bridgeview has access to crews across Western Canada and some areas of the U.S although our customers often deal directly with the crew of their choice.

Q: Should I choose a skid or concrete foundation, and how do I plan it?

Skid packages are available for bin packages up to 27ft x 7 tier. The best foundation depends on how permanent the installation will be, how the site is laid out, and how the cone will be used. Skid packages can offer faster setup and added flexibility, while concrete foundations offer stability and easy cleanup for more permanent installations. Review site conditions, leveling, load requirements, and anchor planning before finalizing installation.

Q: How do I plan a concrete pad?

The concrete required is dependent on local ground conditions. Your local concrete supplier can assist you with designing an appropriate foundation.

Q: Can Jet Stream aeration be added now or later?

Absolutely. Our Jet Stream aeration is specifically built for these hopper systems. You can spec it out with a new build or add it to many retrofit applications later on. When ordered along with your new hopper cone, the cone sheets will be pre-punched with all bolt holes and ducting holes required to install the Jet Stream system which significantly reduces installation time.

Q: Are ladders included in my Bin and Cone combo quote?

Ladders are an accessory that will be listed separately on the quote.

Product Overview

Up to 20000 Bushels – Easy Shipping

Built for global shipping and long-term durability, Bridgeview’s bolt-together hopper cones give you a flexible, high-performance foundation for efficient grain handling. Multiple configurations make it easy to match your exact storage and workflow needs.

Bolt-together design for easy shipping worldwide
Complete bin/cone packages available
Cones available for retrofit to most brands of bins
Powder-coated structure, galvanized sheets
Available Jet Stream aeration

Durable Construction: Built for the long haul with G90 galvanized sheets and powder-coated structural steel.

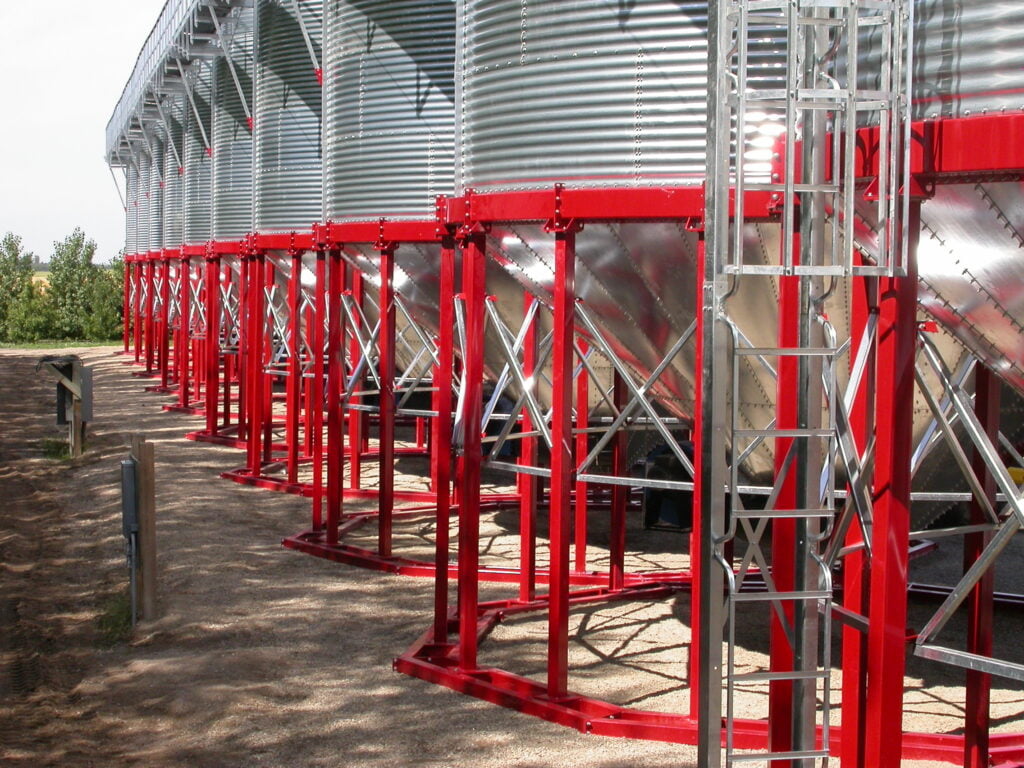

Foundation Options: Can be supplied with double or triple skids for quick setup or installed on a concrete foundation for a more permanent solution.

Bridgeview - Bolt together hopper cone load

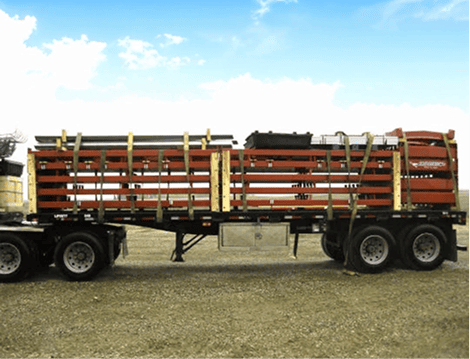

Global Shipping: Designed to fit on standard-width trailers, eliminating the need for pilot vehicles or specialty permits. The freight savings can often pay for assembly!

Bridgeview - Bolt together hopper cone assembly

Maximum Capacity: Standard-duty cones are rated for five-tier bins (Wide Corrugation). Heavy-duty models are rated for nine (Wide Corrugation). X-braces are designed for maximum auger clearance.

Simple Handling. Better Control

Hoppered storage is the most efficient and versatile grain storage option available. It’s the easiest system to integrate into existing handling setups, and unlike temporary solutions, it retains long-term value.

Bridgeview hopper cones really prove their worth when you’re dealing with tough grain. Paired with Bridgeview’s Jet Stream aeration, the cones give you maximum control to turn, condition, and dry grain as needed. And compared to grain bags, hopper storage is a permanent investment—no plastic to replace and no losses from wildlife damage.

Specifications

Bolt-Together Hopper Cones Specifications

All models are bolt-together
Diameters from 12ft to 27ft
Standard models support up to 5-tier bins (Wide Corrugation)
Heavy-duty models support up to 9-tier bins (Wide Corrugation)
40, 45, and 60 degree models
Available Skid Foundations

Features & Enhancements

Versatile Chute

Strategic Clearance

Full Line of Accessories Available

Manhole

How to Choose the Right Hopper Cone

Selecting the right hopper cone will ensure long-term structural integrity and performance. To ensure you get the right size, consider:

What brand is the bin?
What is the bin diameter?
How many tiers is the bin?
Is the bin wide corrugation (44 inch tall) or narrow corrugation (32 inch tall)?
Is the side wall stiffened?

If installing on an existing concrete pad, is the pad at least 2ft larger in diameter than the bin and strengthened with rebar throughout?
Is aeration required?
What is the intended use?
What are your future expansion plans?

Hopper cones are available in standard-duty and heavy-duty options. The best choice for your operation will depend on both your current bin and whether future expansion is part of the plan.

Available Sizes

Bridgeview makes hopper cones to suit a variety of brands in diameters ranging from 12ft to 27ft. The following chart lists the specifications of our standard sizes.

Model Number	Cone Angle (External)	Diameter	Style	Cone Capacity			Chute Clearance	Overall Height	Max. Bin Size	Overall Weight (lbs.)
Model Number	Cone Angle (External)	Diameter	Style	Bushels	ft³	Tonnes	Chute Clearance	Overall Height	Max. Bin Size	Overall Weight (lbs.)
HCB-12-45-S	45°	12′	Std.	201	250	5.46	25″	8’6”	1908 bu	2021
HCB-12-45-H	45°	12′	H.D.	201	250	5.46	25″	8’11”	3348 bu	2421
HCB-12-60-S	60°	12′	Std.	305	380	8.31	43″	13’3”	1908 bu	2665
HCB-12-60-H	60°	12′	H.D.	305	380	8.31	43″	13’3”	1908 bu	3348
HCB-14-37-S	37°	14′	Std.	230	286	6.26	20″	7’2″	1950 bu	1594
HCB-15-40-S	40°	15′	Std.	369	459	10.04	25″	8’11”	3030 bu	2829
HCB-15-40-H	40°	15′	H.D.	369	459	10.04	25″	8’11”	5300 bu	3397
HCB-15-45-S	45°	15′	Std.	426	530	11.59	25″	10’0″	3030 bu	2917
HCB-15-45-H	45°	15′	H.D.	426	530	11.59	25″	10’0″	5300 bu	3617
HCB-15-60-S	60°	15′	Std.	681	848	18.57	25″	16’0″	3030 bu	4330
HCB-15-60-H	60°	15′	H.D.	681	848	18.57	25″	16’0″	5300 bu	5404
HCB-18-40-S	40°	18′	Std.	617	768	16.82	25″	10’2″	4420 bu	3626
HCB-18-40-H	40°	18′	H.D.	617	768	16.82	25″	10’2″	7600 bu	4657
HCB-18-45-S	45°	18′	Std.	716	891	20.65	25″	11’5″	4420 bu	3840
HCB-18-45-H	45°	18′	H.D.	716	891	20.65	25″	11’5″	7667 bu	4968
HCB-19-40-S	40°	19′	Std.	793	991	21.67	25″	11’1″	3500 bu	3923
HCB-19-40-H	40°	19′	H.D.	793	991	21.67	25″	11’1″	5400 bu	4338
HCB-21-40-S	40°	21′	Std.	958	1191	27.61	25″	11’5″	6100 bu	5140
HCB-21-40-H	40°	21′	H.D.	958	1191	27.61	25″	11’5″	10508 bu	6711
HCB-24-40-S	40°	24′	Std.	1678	2088	38.23	25″	13′ 5″	8050 bu	9500
HCB-24-40-H	40°	24′	H.D.	1678	2088	38.23	31″	14′ 1″	13822 bu	12018
HCB-27-40-S	40°	27′	Std.	2318	2885	63.15	25″	14′ 5″	10300 bu	10080
HCB-27-40-H	40°	27′	H.D.	2318	2885	63.15	31″	15′ 4″	17610 bu	14374
DTHCB-18-40*	40°	18′	Std.	617	768	16.82	13′ 6″	22′ 2″	4425 bu	11755
DTHCB-18-45*	45°	18′	Std.	716	891	20.65	13′ 6″	23′ 5″	4425 bu	11900
21499	Chute Crank Extension Kit* (Compatible with all models except HCB-12-60-S, HCB-12-60-H, and HCB-14-37-S)

Retrofit Existing Bins

Bridgeview makes cones to retrofit existing bins from most manufacturers including the following:

If your bin is not listed above, we’ll ask you for the circumference of your bin (measured at the bottom of the valley in the corrugation as well as the number of spaces between the bolts per bin sheet. We can often cross reference your bin to a model already in production.

Installation Planning & Shipping

The Bridgeview bolt-together design is engineered to solve the logistical headaches of hopper cone delivery and setup.

Simplified Shipping: Our bolt-together design enables components to be stacked efficiently, making shipping more cost-effective and facilitating delivery to remote locations or export markets.

Site Preparation: Before delivery, ensure your site is level and compacted. Decide between a skid package or a concrete foundation. Skids offer faster setup and the flexibility to move the bin in the future, while concrete provides a permanent, high-stability base for larger, heavy-duty setups.

Lifting & Assembly: Because the system is assembled on-site, you’ll need to plan for appropriate lifting equipment (such as a crane or telehandler) and a staging area for the components. The bolt-together process eliminates the need for specialized on-site welding, resulting in a cleaner, more controlled assembly.

Integration: Consider your existing equipment heights. Our cones are designed with chute flexibility to ensure your augers and conveyors have the necessary clearance for a seamless grain handling workflow.
