Yes! Many operations use a drive-under hopper as a surge bin so grain can be staged ahead of time and loaded into trucks quickly when needed. This can be especially helpful to keep trucks moving without relying on slower unloading methods for every load.
- Call Us 1 306-745-2711
-
Follow Us
Drive-Under Hoppers
Product Overview
Fill a Semi in 3 Minutes!
Featuring all of the quality features of Bridgeview’s standard hopper line, the Drive-Under Hopper is built to load your trucks fast. With the power of gravity, these units streamline your loading system and significantly reduce turnaround times during busy seasons.
Fill a Semi in as little as 3 minutes
- Gravity unload at over 300 bushels per minute
- Bolt-together design for easy shipping worldwide
- Galvanized and powder-coated construction for long-term durability
- Ideal for integration into existing grain-handling systems
Massive Throughput: Engineered for high-speed gravity discharge, allowing you to move grain at a rate of over 300 bushels per minute.

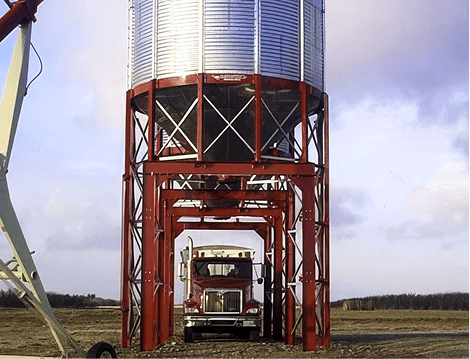

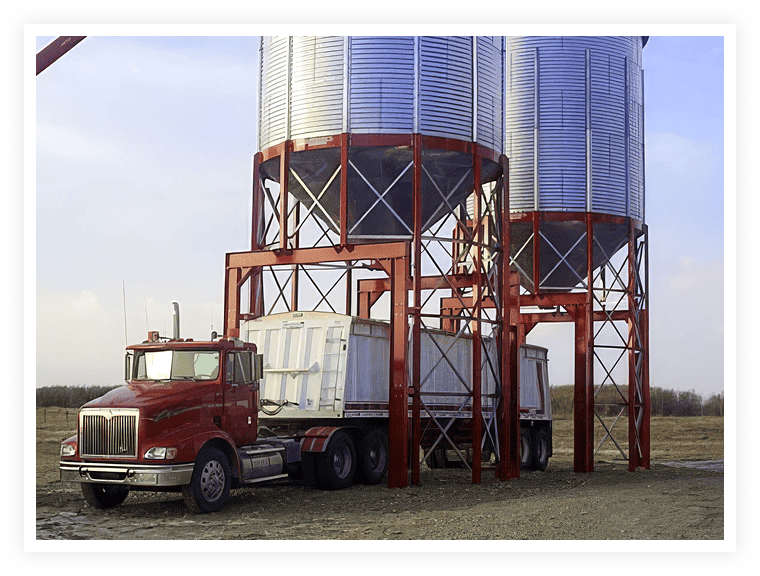

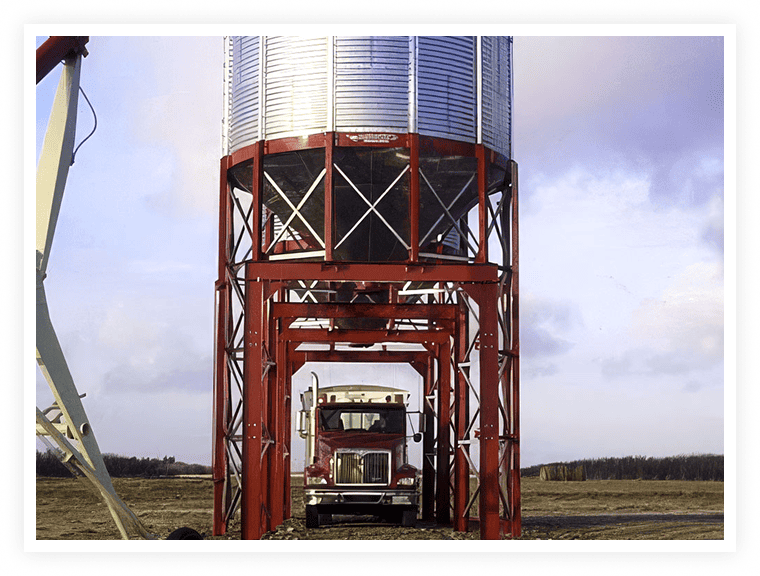

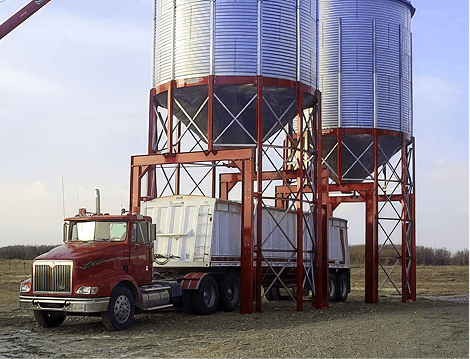

Streamlined Clearance: Features a drive-under opening 12′ wide by 13′ 6″ high, designed to accommodate standard trucks and grain trailers.
Ground-Level Control: Includes an extended crank system that allows operators to open and close the chutes from the safety of the ground.
Efficient Filling: With an overall height of 46′ 6″, the 5,000-bushel model is designed to be easily filled using a standard 70′ auger.
Simple Handling. Better Control
Drive-under storage is the ultimate efficiency upgrade for high-volume grain operations. By setting one up as a surge bin, you can fill it when time permits, but empty and keep your trucks moving in minutes.
Bridgeview Drive-Under bins truly prove their worth when logistics demand speed. Unlike traditional bins that require a tractor and auger for every load, these hoppers allow your trucks to keep moving. It’s a permanent investment that modernizes your yard, reduces labour requirements, and retains high resale value compared to temporary storage solutions.
Features
Installation & Foundation Options
Planning your installation is critical for maximizing the efficiency of your new hopper system:
- Flexible Mounting: Units are designed for versatile installation and can be set directly onto your concrete pad or mounted on a steel foundation.
- System Integration: These bins are engineered to be easily tied into your existing grain handling systems, whether you’re using conveyors or augers.
- Global Portability: Despite their size, the bolt-together design allows these units to be shipped efficiently worldwide and assembled on-site.
Strategic Yard Integration
Our Drive-Under Hoppers are strategically designed to improve hauling schedules for maximum efficiency:
- Eliminate Loadout Bottlenecks: Use the hopper as a surge bin to stage grain ahead of time, keeping your trucks moving even when your primary unloading methods are slower.
- Consistent Logistics: Centralizing your loadout point reduces the need for repeated, time-consuming auger moves, making the yard easier to manage when labor and equipment are at a premium.
- Long-Term Scalability: As your operation grows, these units serve as a permanent investment that retains high resale value and simplifies grain movement across your entire handling system.
Specifications
| Bin Size | Bushels | Capacity* Cu. Ft. | Tonnes | Total Height |
|---|---|---|---|---|
| 18’ diameter x 5 rings | 5028 bu. | 6257 | 136.8 | 46’2” |
| 18’ diameter x 4 rings | 4215 bu. | 5245 | 114.7 | 42’6” |
| 18’ diameter x 3 rings | 3401 bu. | 4232 | 92.6 | 38’10” |
| * Capacity includes bin and cone | ||||
Photos

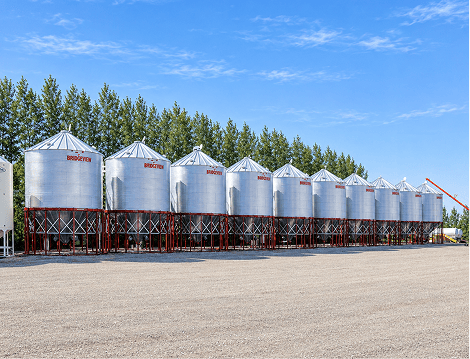

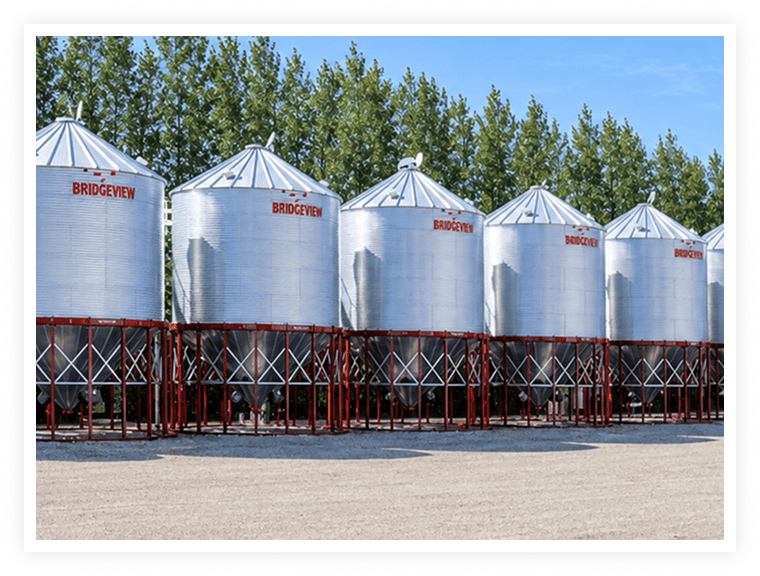

Drive-Under Hopper Photos
Brochures
