Jet Stream Air

Q: How do I know if Jet Stream Air is the right upgrade for my current setup?

Jet Stream Air is a strong option for operators who want more even airflow, improved grain conditioning, and more flexibility during difficult harvest conditions. It is especially worth considering when a current aeration setup is resulting in uneven cooling, limited drying performance, or inconsistent cleanout.

Q: When is Jet Stream Air a better choice than a conventional center-style aeration system?

Jet Stream Air may be the better choice when airflow uniformity is a higher priority, especially in operations dealing with tough grain, higher moisture levels, or inconsistent harvest conditions. Its distributed leg design helps move air across a broader area of the cone, supporting more even conditioning and drying than more centralized airflow patterns.

Q: What should I consider before choosing a fan for Jet Stream Air?

Fan selection should be based on bin diameter, crop type, grain condition, and whether the goal is cooling, conditioning, or active drying.

Q: Is Jet Stream Air a good option for operations handling more than one crop type?

Yes. Jet Stream Air is well-suited to operations that need flexibility across changing storage conditions and grain types. For producers storing multiple crops through the season, even airflow and reliable cleanout can be especially valuable when switching between commodities or managing variable grain conditions.

Q: How do I decide between a standard configuration and a heavy-duty model?

The right configuration depends on hopper cone size, airflow requirements, and the level of performance needed. Standard, 3 leg systems are appropriate for conditioning while heavy duty models offer more airflow for drying applications.

Q: What should I expect when evaluating Jet Stream Air for a retrofit project?

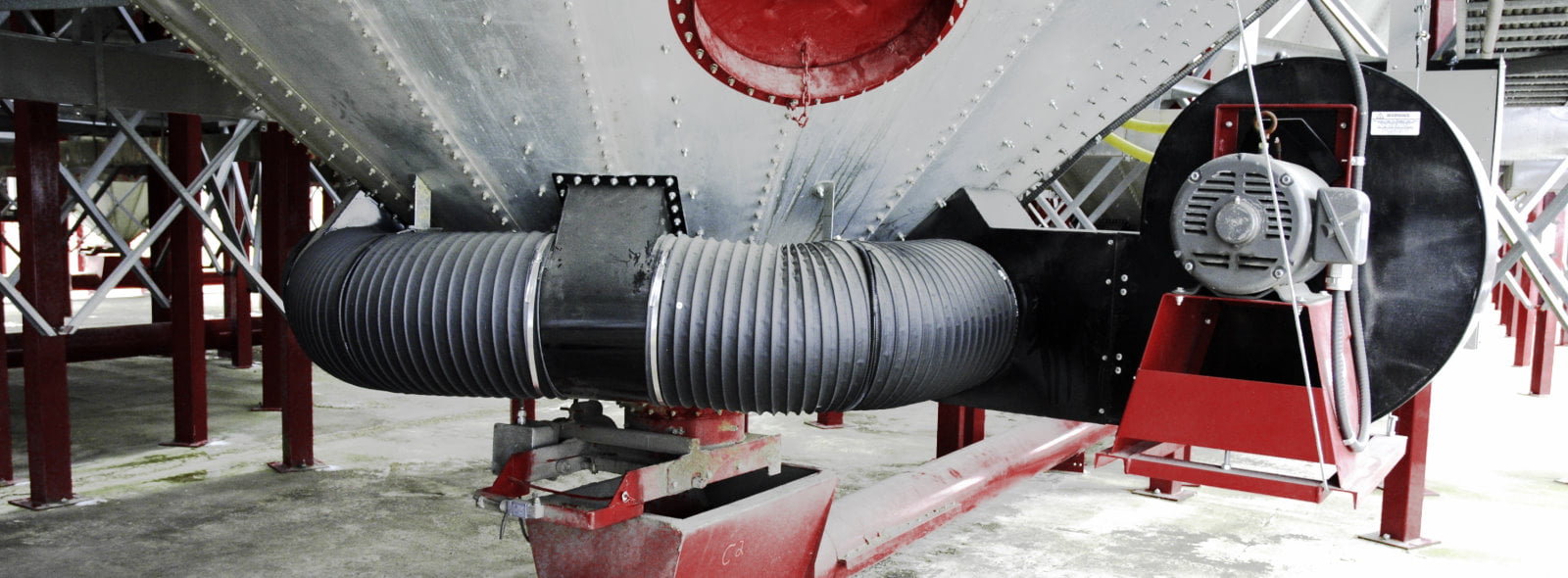

Jet Stream air components are universal and can be adapted to most hopper cones. The components are designed to fit through standard manholes and no special tools are required. In retrofit applications, mounting holes must be drilled or cut for the air panels and air ducts. Air ducts are connected via an exterior plenum which keeps the interior of the cone more free from obstructions.

Q: What fan is required for a Jetstream air system?

For standard applications, a rule of thumb is 1hp per 1000 bushels. A single phase, 10hp fan is often enough for up to a 27ft, 5 tier bin. For larger bins or more demanding requirements, customers can upgrade to 3 phase fans up to 30hp.

Product Overview

The Aeration System of Choice

Superior drying designed and tested extensively over 15 years, Bridgeview’s Jet Stream Air helps you manage grain in tough conditions year after year. By providing even airflow throughout the bin, this system delivers exceptional cooling and drying performance, ensuring your crop remains in peak condition.

Jet Stream Air can be installed through the manhole without lifting the bin.
More airflow with nearly double the drying capacity of conventional systems.
Strength and durability to withstand up to 50 feet of grain depth.
Galvanized or powder-coated components for long-term corrosion resistance.
Available for new Bridgeview hopper cones and most retrofit applications.

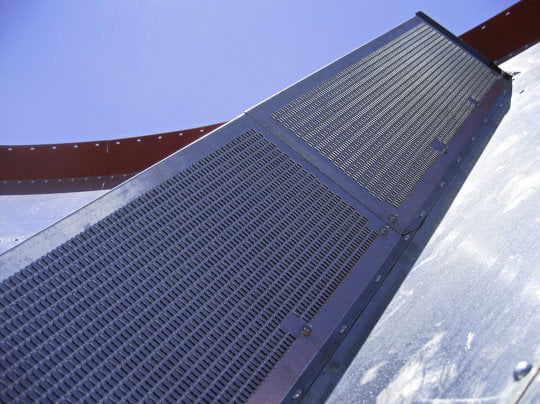

Bridgeview - Jet stream aeration louvre panel

Triangular Aeration Legs: Utilizes two to six steep, perforated triangular legs that extend to the outer diameter of the cone for uniform air distribution.

Easy Cleanout: The steep profile of the legs and tapered cover panels is designed to shed grain easily, preventing hang-ups during unloading.

Impact Resistance: Uses reinforced, low-profile legs that start away from the center column to minimize structural damage from high-moisture grain falling.

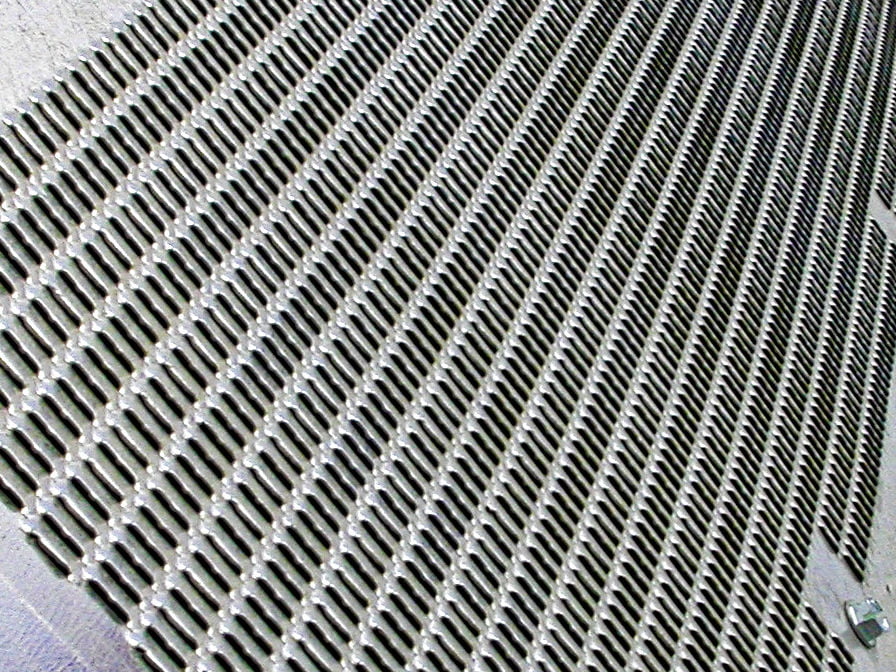

Small Grain Security: Each louver features a central tang to block small seeds, such as canola, from entering the aeration ducts.

Simple Handling. Better Control

Aeration is an essential tool for dealing with the reality of tough grain. Jet Stream’s distributed leg design maximizes the contact area between air and grain while distributing air to the outer extents of the cone. This gives you the ability to condition your harvest easily, ensuring your storage remains a permanent, value-retaining investment.

For a long range vision, consider pairing Jetstream with an aeration heating system and a Grain Express loop. The ability to turn and aerate with heated air provides a great deal of extra control when conditions get tough.

Specifications

Jet Stream Specifications

Bin Compatibility: Standard bins up to 27-foot diameter (custom options for larger).
Material Finish: All components are galvanized or powder-coated.
Hardware: Bolt-together design for modular assembly.
Fan Compatibility: Supports single-phase and 3-phase motors (3 hp to 10+ hp).

Bridgeview - Jet stream air top view aeration legs

Features

External Plenum

Compatibility

Upgrade Kits & Options

More Perforations

Fan and Power Options

Available Models and Specifications

Bridgeview ID#	Model	Number of Legs	Number of 4′ Ducts	Number of 2′ Ducts	Total Max. Bushels
20515	14′ Retrofit Westeel	2	1	0	1,950
19073	15′ Standard	2	1	1	3,400
19074	15′ Standard	3	1	1	5,700
19071	18′ Standard	3	2	0	5,000
19072	18′ Heavy-Duty	3	2	0	8,400
19070	19′ Standard/Heavy-Duty	3	2	0	5,000
19068	21′ Standard	3	2	0	7,000
19069	21′ Heavy-Duty	3	2	1	11,500
19066	24′ Standard	4	2.	0	9,700
19067	24′ Heavy-Duty	6	2	1	15,500
19064	27′ Standard	3	3	0	12,600
19065	27′ Heavy-Duty	6	3	0	20,000

Accessory Kits

Bridgeview ID#	Accessory Kit
20516	Fan Adapter – Edwards 3 hp, 5 hp, or 7.5 hp HSC Fan
194701	Fan Adapter – Edwards 10 hp HSC Fan
21456	Fan Adapter – Keho 10 hp Fan
19475	Fan Mounting Kit – Edwards 3 hp, 5 hp, or 7.5 hp HSC Fan
19474	Fan Mounting Kit – Edwards 10 hp HSC Fan

Choosing the Right System: Jet Stream vs. Conventional Aeration

Understanding the difference between the Jet Stream Air and conventional systems will help you determine which is better for your operation:

When to choose Jet Stream: This system is ideal when airflow uniformity is your highest priority. Its low-profile, decentralized design is also resistant to damage caused by grain impact while loading taller bins.
Performance Advantage: While centralized systems can leave pockets of unconditioned grain, the Jet Stream’s distributed leg design pushes air across a significantly broader area of the cone for more even drying.
Signs You Need an Upgrade: If your current setup results in uneven cooling, limited drying capacity, or grain hang-ups during cleanout, Jet Stream is the recommended solution.
