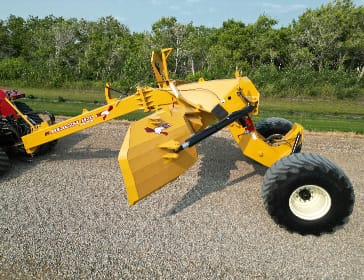

Pulldozer 1870

The U-Shaped Blade is the heart of this machine. In its straight position, it’s built to move mountains of dirt. The Pulldozer 1870 Transformer Blade is 18 feet wide at its maximum width and can move 18 cubic yards, and weighs 21,000 pounds. It’s productive with 250 to 400hp.

Ditching

As the wings fold forward, they raise to create a neat U-Shaped ditch. The slope of the sides is controlled by your wing angle. Work from the center of the ditch upwards rather than working off the sides with a straight blade. Also useful for ripping into harder soil.

Levelling

The U-Shape blade is shaped to cut and roll the dirt for easy filling. Excellent visibility of the cutting edge, along with an extra-long wheelbase, makes the Pulldozer 1870 Transformer Blade a remarkable levelling machine. It’s also a great tool to pull dirt from hills to elevate low areas.

Crowning

As the blades retract behind the center position, the tips lower to create a gentle crown. This configuration is useful for any situation where you need to reach over the edge to grade.

High Lift

The 2-foot blade clearance lets you unload quickly, clear rocks, or lift out of a mud hole if you get in a little too deep.

Hydraulic wings on our Patented Canted Wing Axis—the hallmark feature of the Pulldozer 1870 Transformer Blade.

By tilting the wing axis towards the rear, the wings arc upwards through their forward travel. Combined with a travel range of -10 degrees to +40 degrees (from straight), this motion gives the Pulldozer 1870 Transformer Blade its shape-shifting ability.

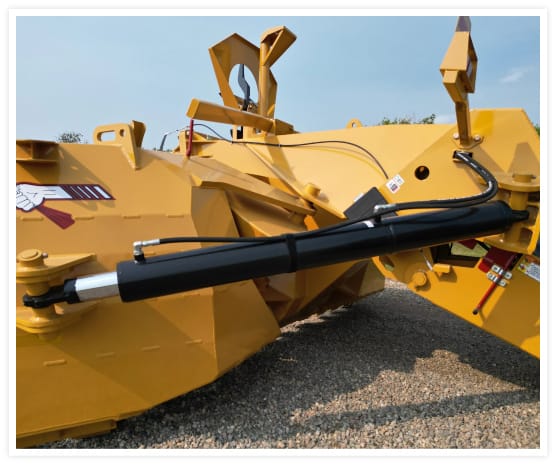

The wings are manipulated by massive 5-inch hydraulic cylinders and are independently adjustable. These machines are built to be used in any configuration. You have full control from the cab to adjust your blade on the go to suit your project.

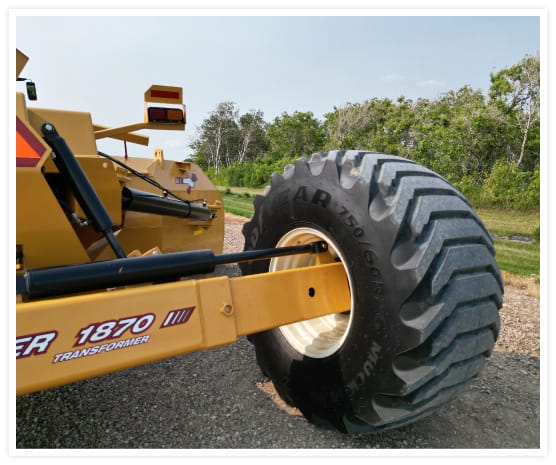

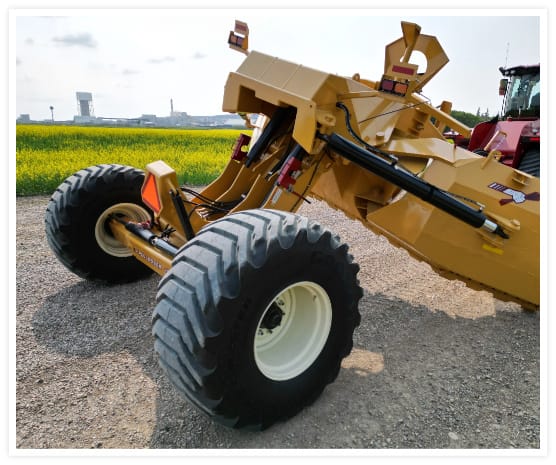

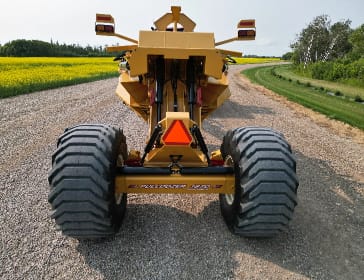

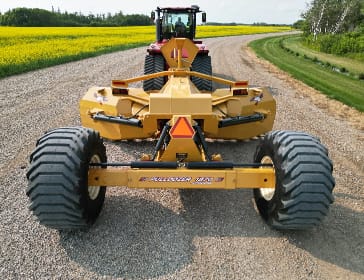

The telescoping axle extends in the field for stability and retracts for narrow transport on the road. In wet conditions, when mud and clay start to build up on the outer wings, the wide tire track of the 1870 resists the off-center load, maintaining precise depth and tilt control.

The axle also serves as a heavy counterweight, providing maximum blade cutting pressure.

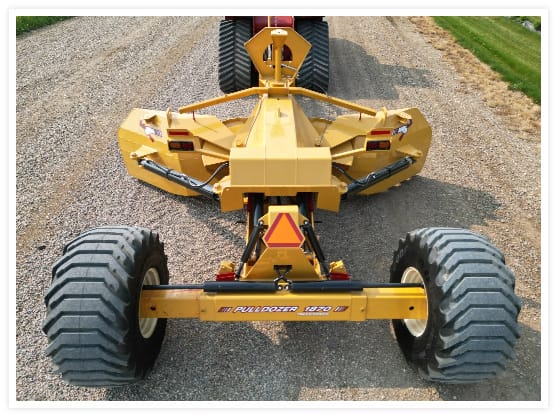

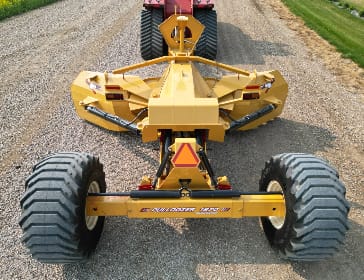

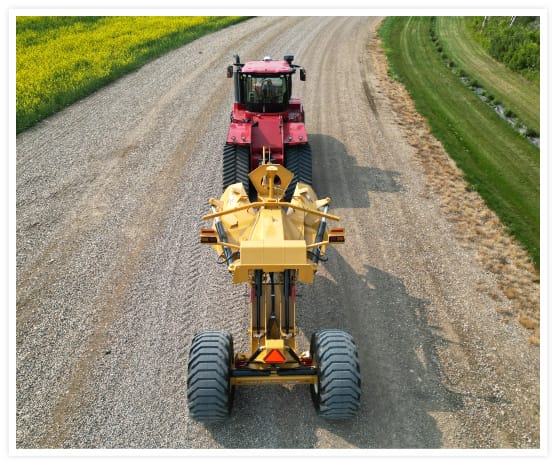

You’ll appreciate the narrow transport mode of the Pulldozer. The 1870 collapses to a mere 10 feet. Road lights and transport locks for the lift and tilt cylinders are standard.

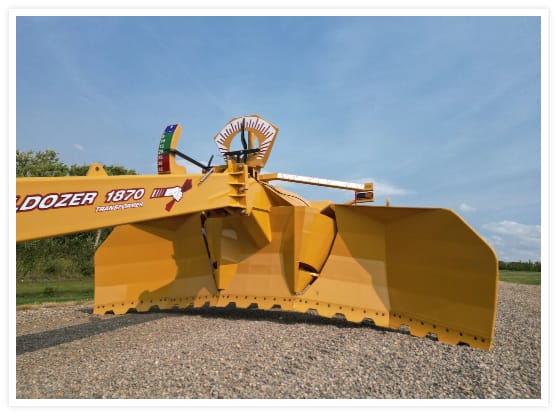

Serrated blades double your cutting pressure from 1000 lb/ft to 2000 lb/ft. These blades are the preferred choice for rough work and most agricultural work. They cut harder with less power for more productivity. They leave the surface less compacted for an excellent seedbed. The cutting edges are available in serrated or smooth, and are replaceable in 4-foot and 6-foot segments. The smooth blades offer a level finish for project cleanup and are a good choice for road maintenance or snow removal.

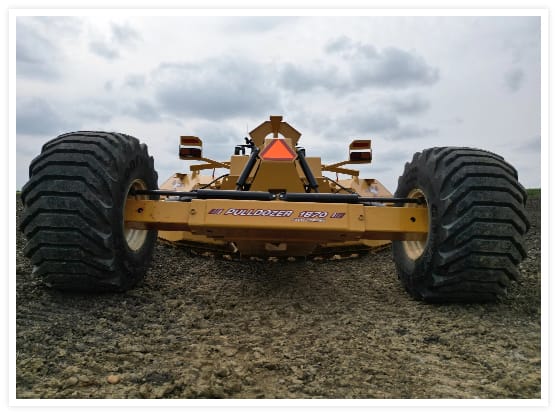

Built for the softest conditions. We know that owners take their Pulldozers into the harshest, muddiest conditions they can find. That’s why we fit big rubber on each unit for better flotation and puncture resistance.

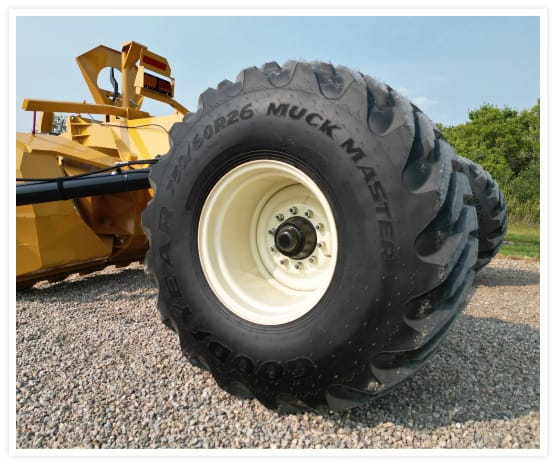

The Pulldozer 1870 Transformer Blade features 750/60R26 Muckmasters.

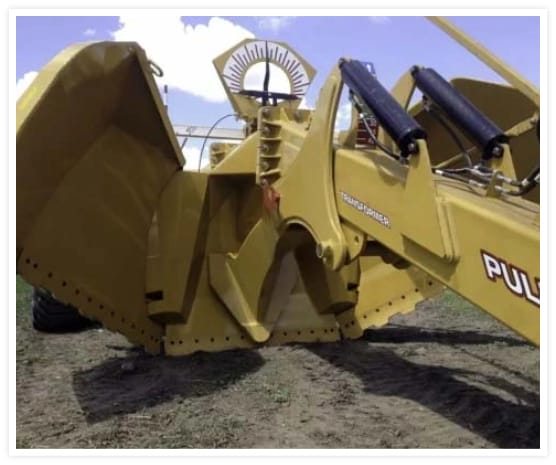

Pulldozers are supremely versatile in stock form, but for even more capability, consider the trencher attachment. Available as a pre-order factory option, the XL can rip a V-shaped trench up to 42 inches deep with no overburden and no ridges to block water from entering. The XL trencher is invaluable for draining waterlogged land. With the blade up and the trencher down, it pulls easily enough to get further into the mud to create drainage channels. The tip is hardened, and the blade retracts fully to allow normal Pulldozer operation. The XL Trencher features an integrated depth indicator, which is easily readable from the cab and ensures consistency when operating.
