Bale King 6300
6 Bales per Load
Cut your feeding and bedding time by more than half with a Bale King 6300.
It also self loads in less than a minute for outstanding efficiency.
Save time, fuel, and money with the Bale King 6300
High Capacity Feeding

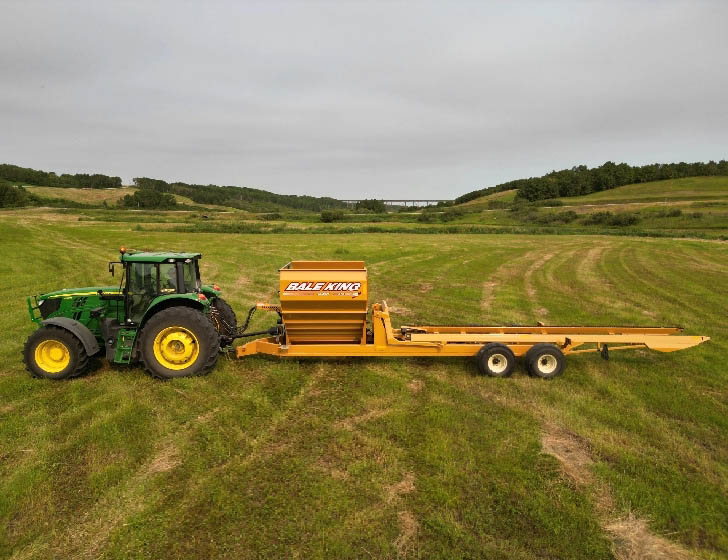

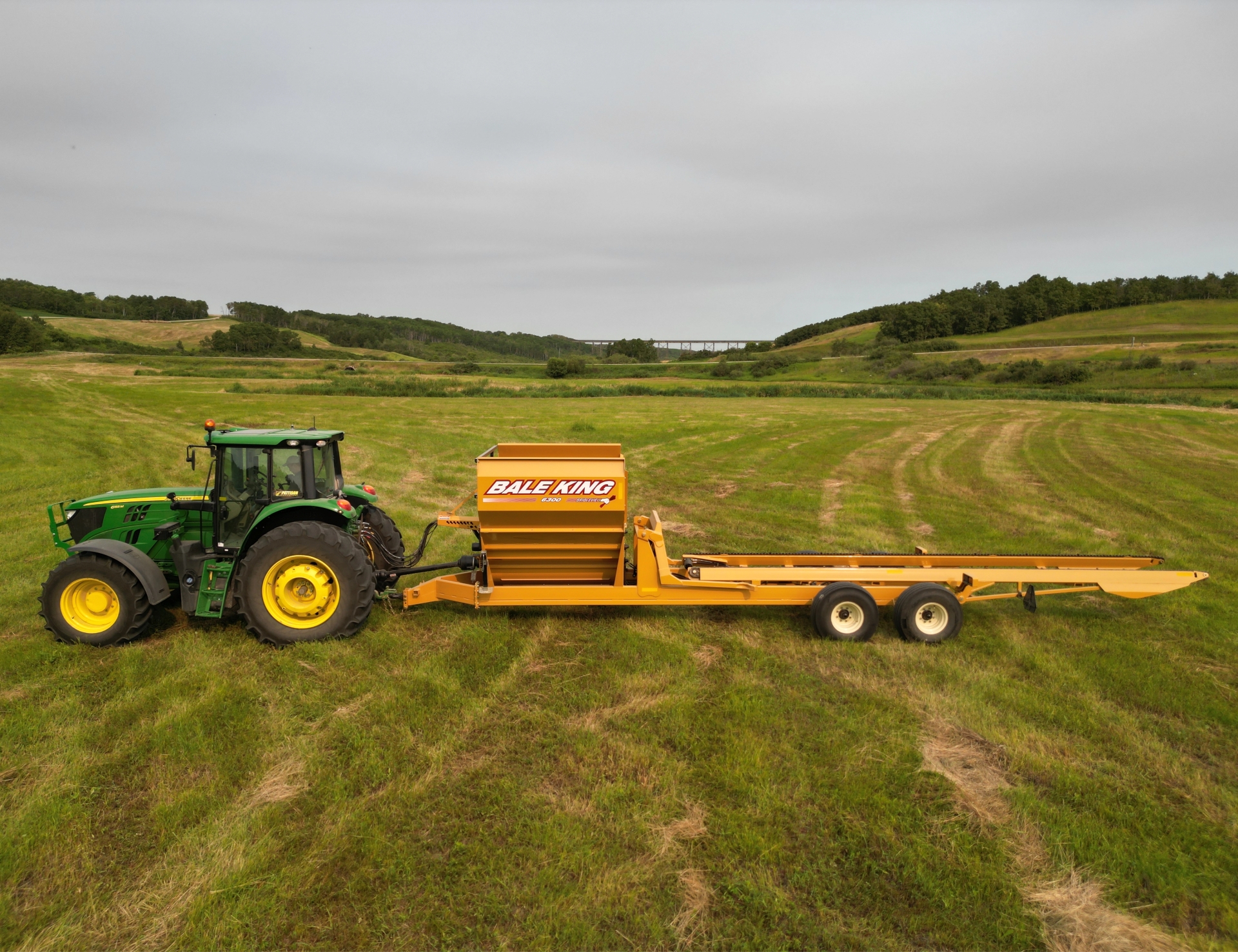

The Bale King 6300 has its roots on large Nebraska ranches with a history going back over 25 years. The design combines a robust 5300 style processing unit, a low profile conveyor deck, and a tandem torflex undercarriage. Whether you’re feeding large numbers or facing a long drive out to the pasture, the 6300 will help you get more done in less time.
Bale King processors help simplify your operation and work to get more out of your feed supply. Processed bales take less energy to digest while windrowing gives every cow equal access. Bale King processors are also the tool of choice for bedding straw. Owners report as much as 3X the coverage per bale compared to rolling straw out.
Overview

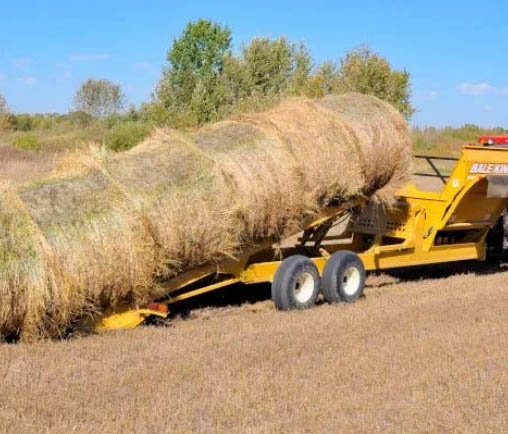

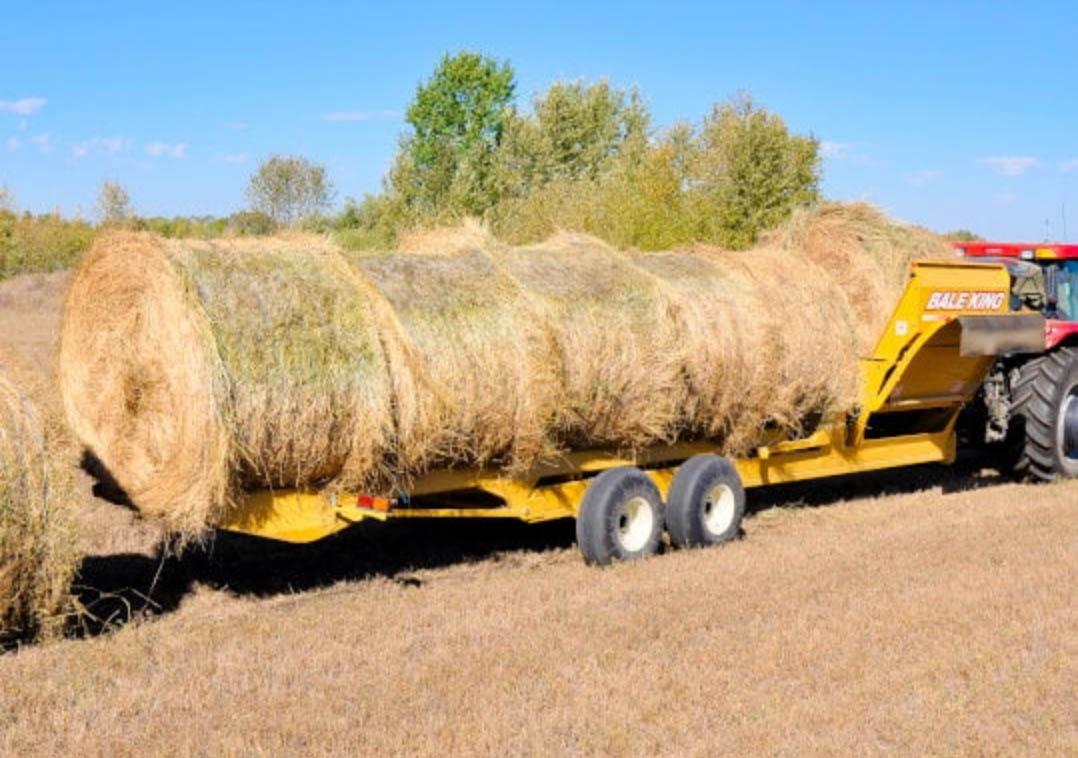

- 6 Bale Capacity (6ft Diameter) (5 bales on the deck, 1 in the processor)

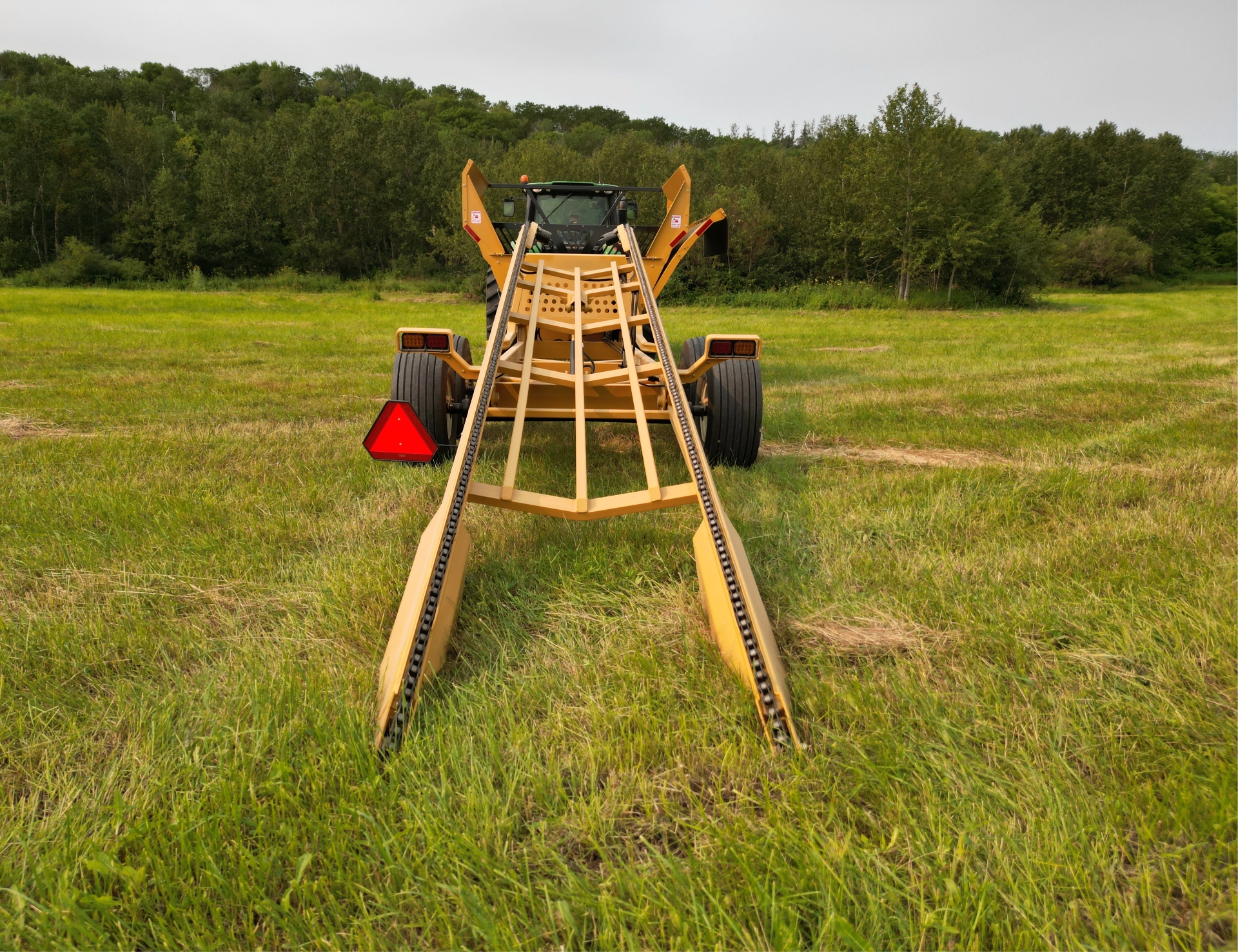

- Self loads by backing under a row of bales
- Chain conveyor with loading fork to transfer bales into processor unit
- Windrow, bunk feed, or bed: Switch between functions with the standard hydraulic deflector
Standard Features

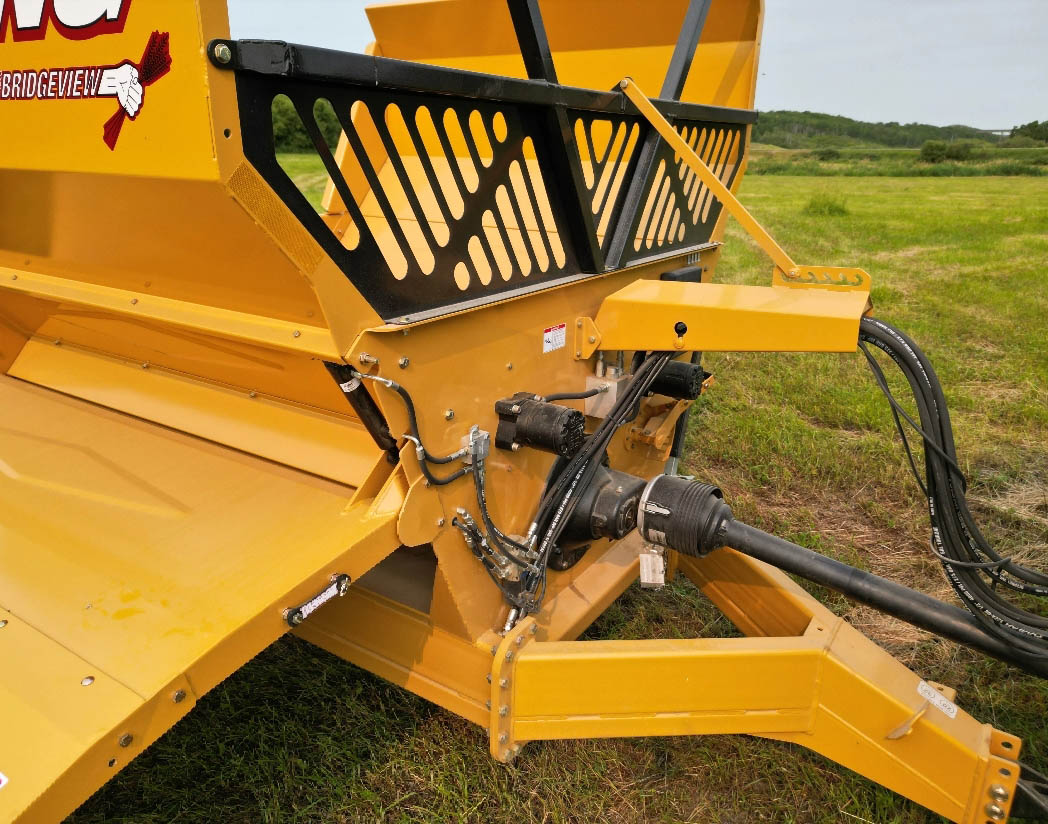

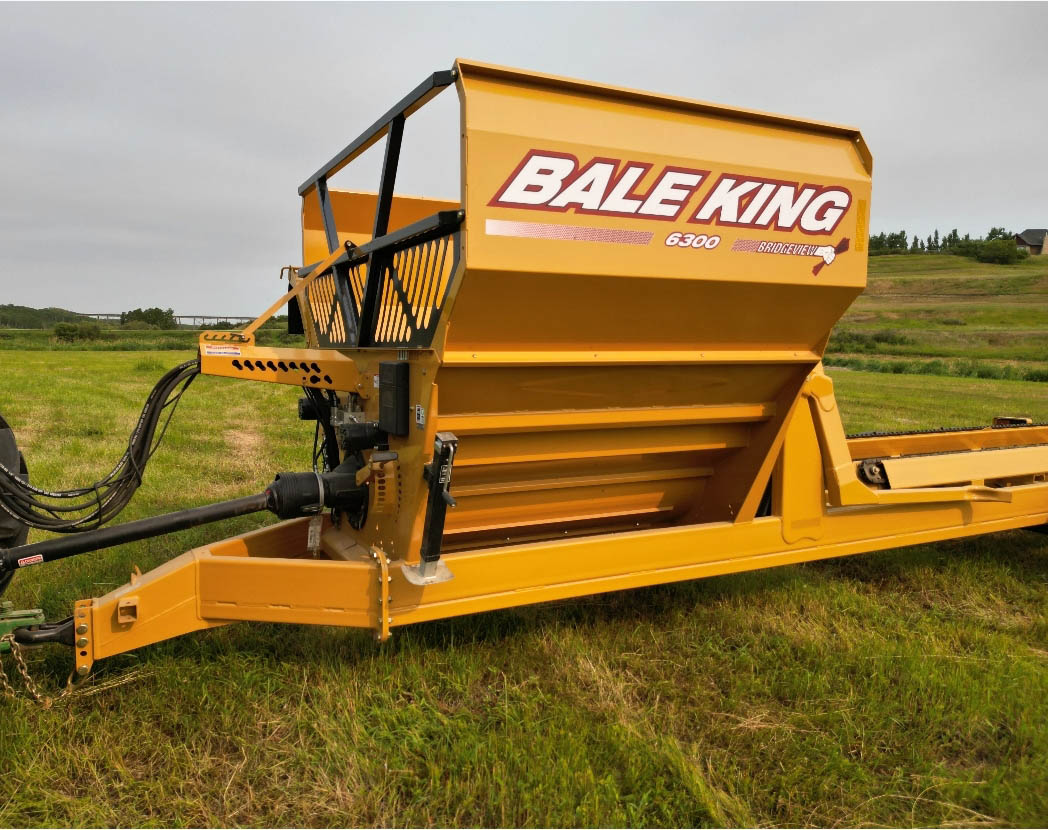

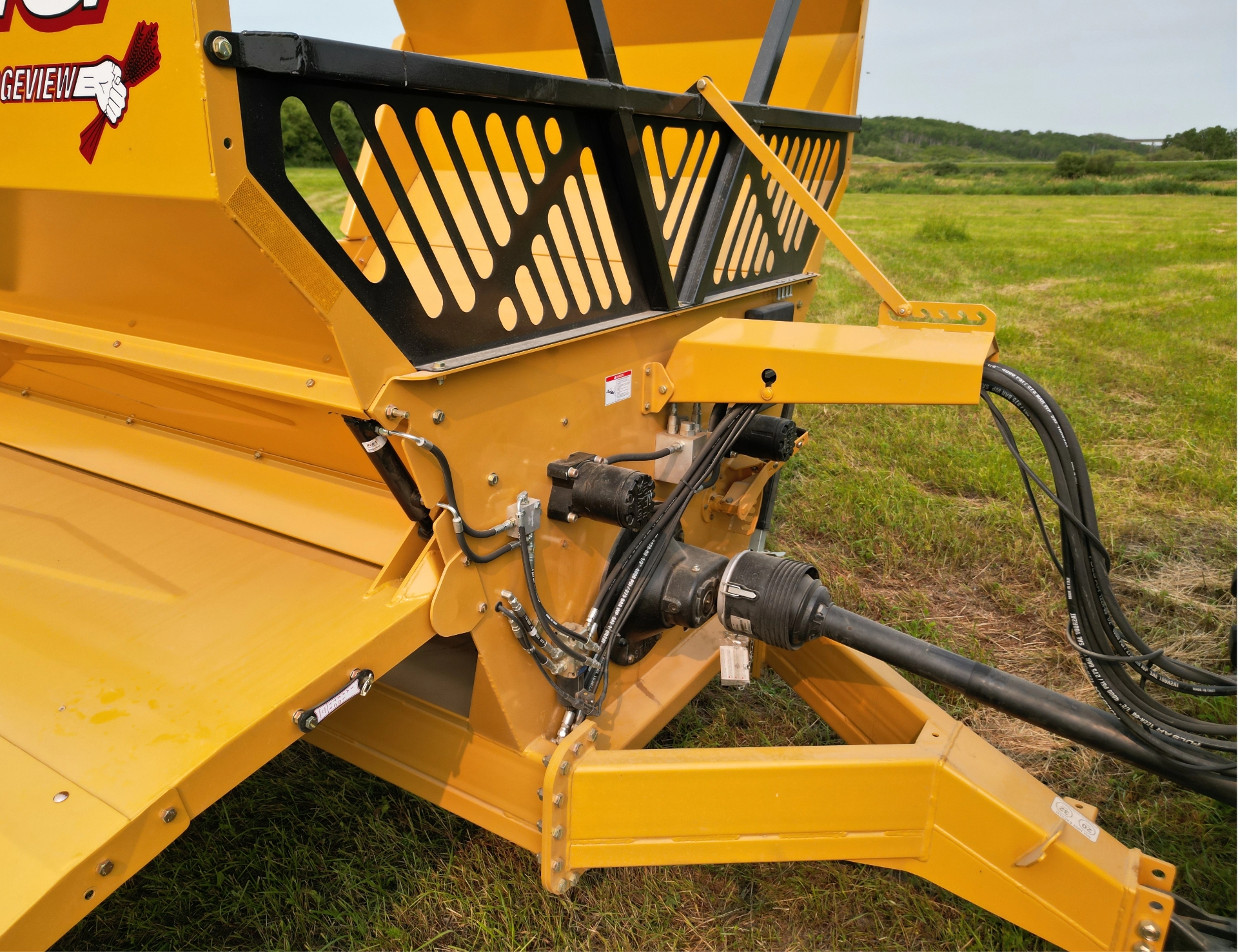

The standard 1000 RPM driveline with shearbolt protection powers a low maintenance gearbox. No belts or chains to maintain. The 80 degree constant velocity PTO shaft gives you extra maneuverability in tight quarters.
The bale rollers are direct drive by high torque hydraulic motors with flow and pressure protection.
The hoop grate adjustment lever provides easy adjustment for varying bale conditions.

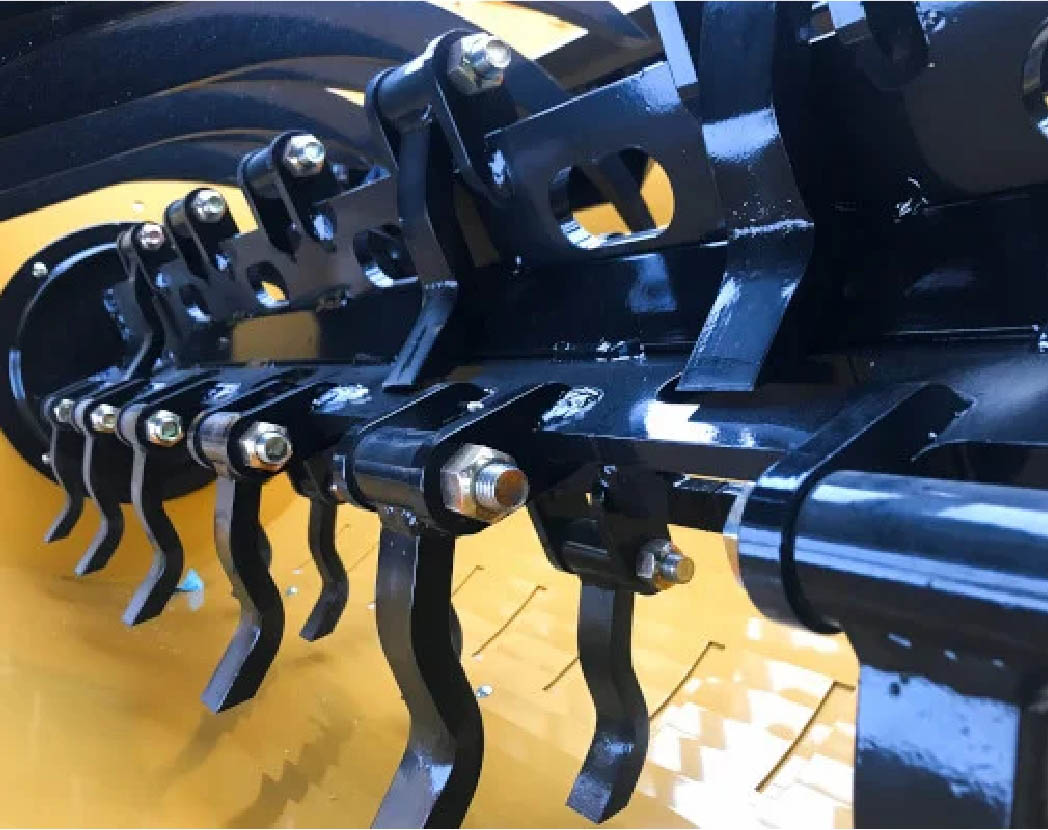

The heart of every Bale King is the X-Rotor which provides notable benefits over pipe style rotors.
- It’s fan shaped profile moves more air to increase straw spreading distance.
- The X creates a cavity beneath the twine/net to simplify twine removal with a utility knife. No more cutting twine against a steel pipe
- Pipe style rotors are prone to cracking when flails slap back under heavy load. The X rotor provides additional rearward travel for the flail which results is less metal fatigue and a quieter overall experience.
The 27″ diameter rotor at 7000 ft/min flail speed combined with 28 heavy flails on oil impregnated bushings provides exceptional aggression and durability.

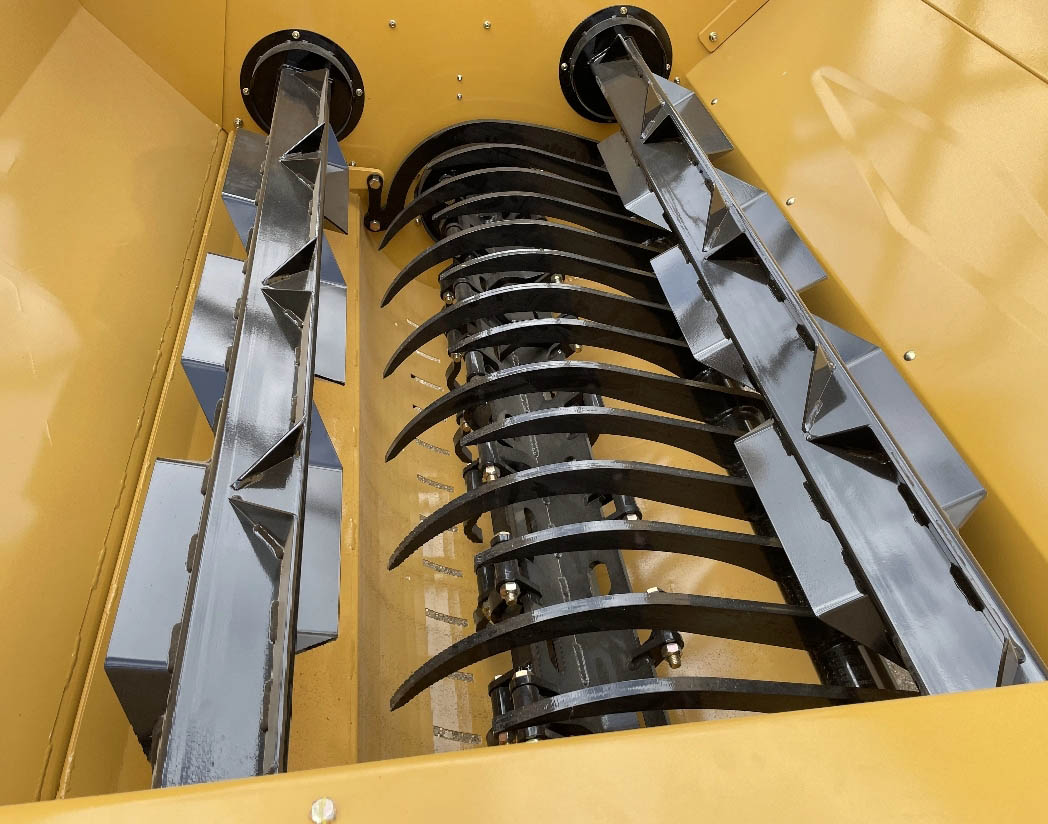

The 6300 features an upgraded hoop grate to improve performance in a wider variety of conditions. The alternating long hoop / short hoop design improves throughput while controlling the flow through the rotor.

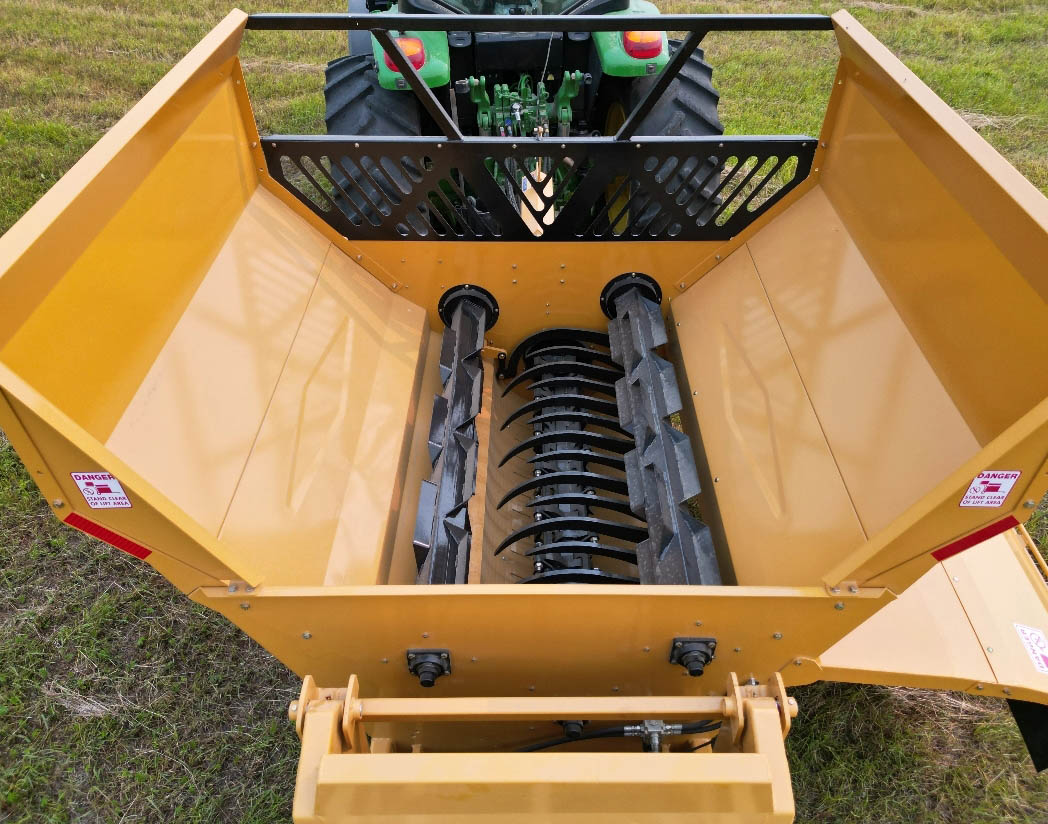

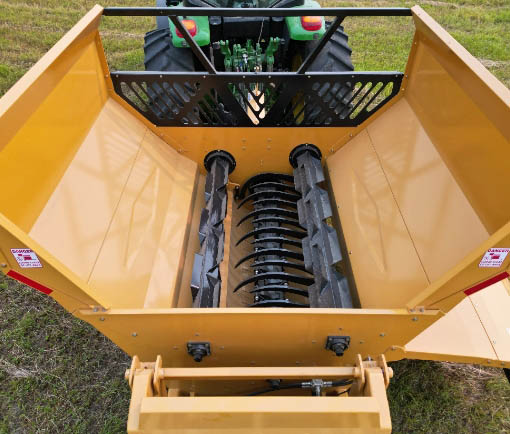

The bale rollers combine rows of wide paddles and short spikes to provide the traction required for a wide range of bale types. These rollers offer effective bale manipulation, low maintenance, and are unaffected by snow and ice freezing in the tub.

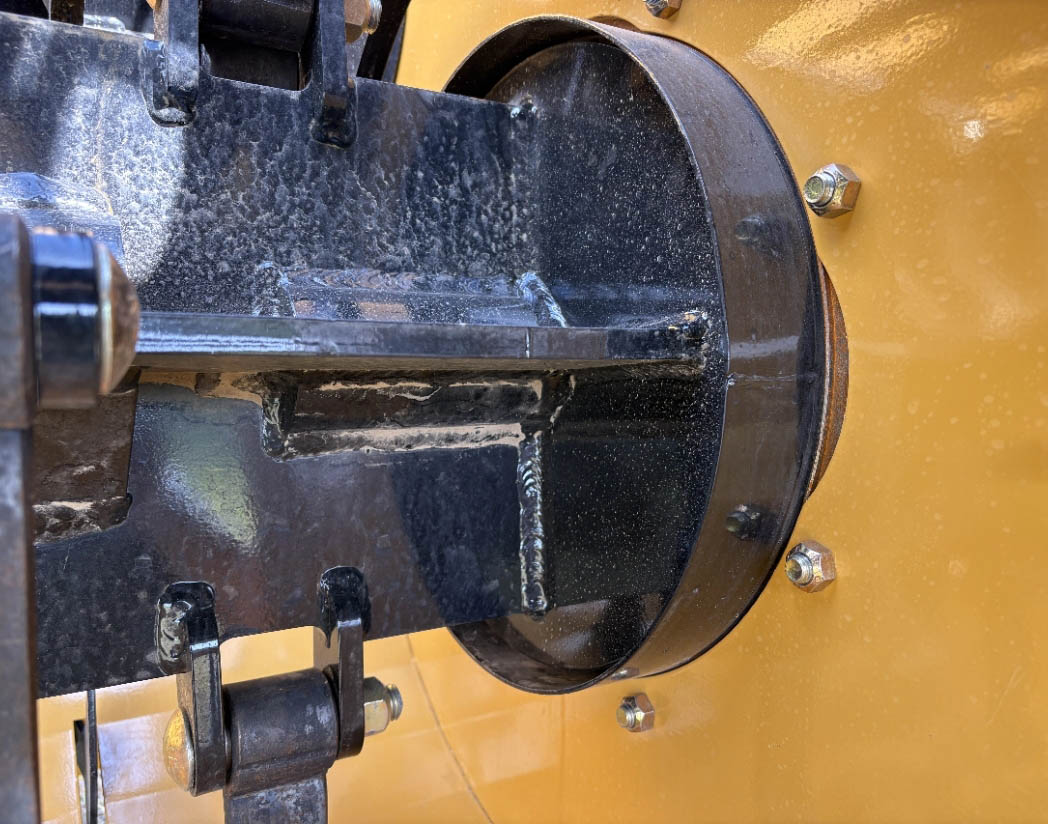

Twine guards on the both ends of the rotor and bale rollers keep twine and net out of your bearings

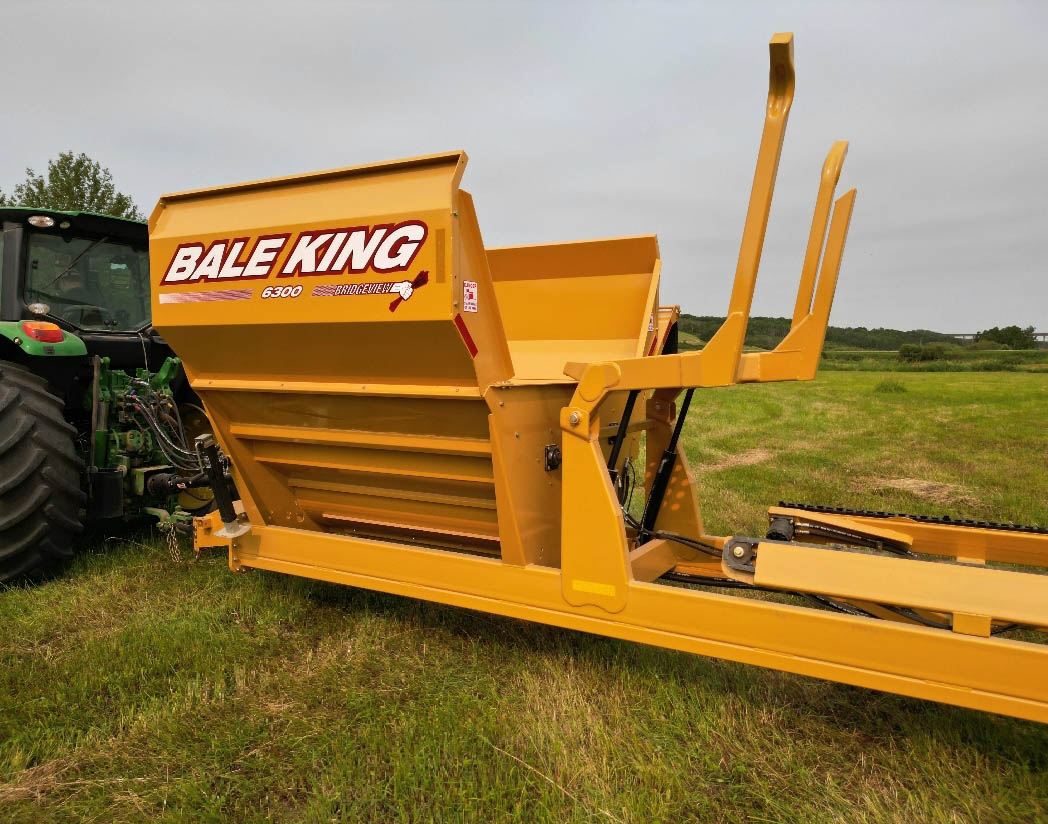

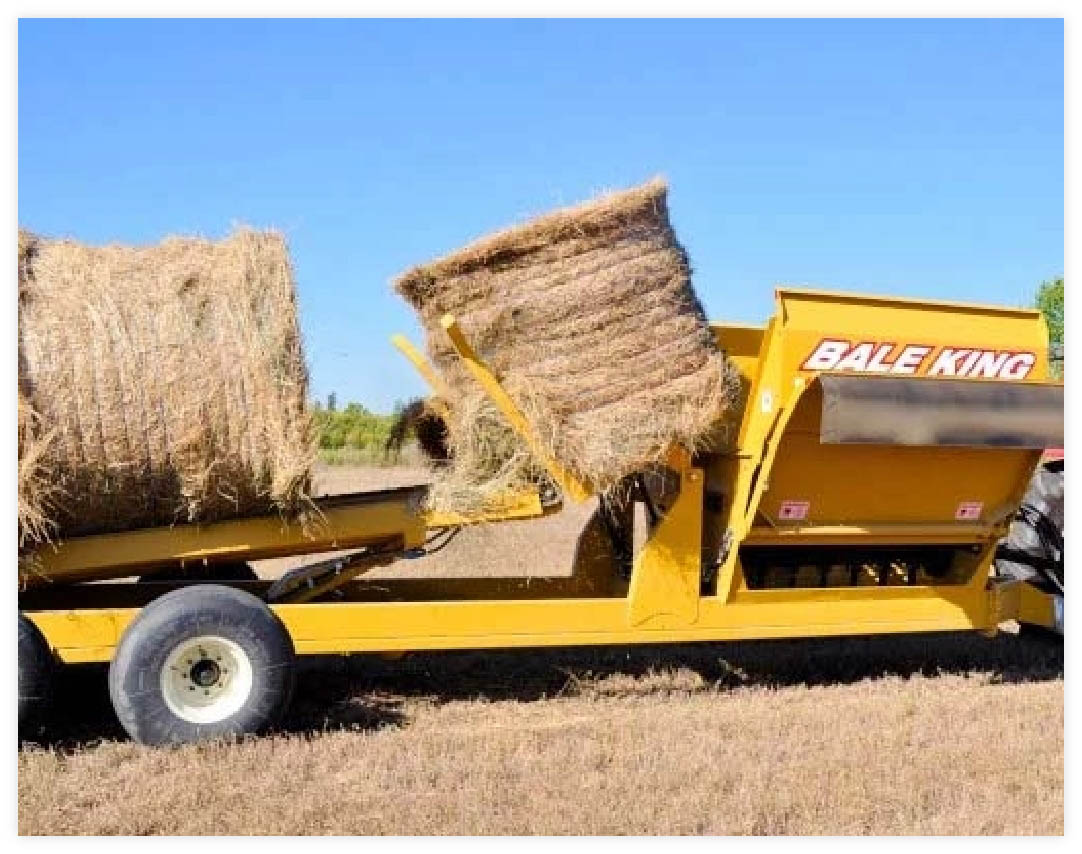

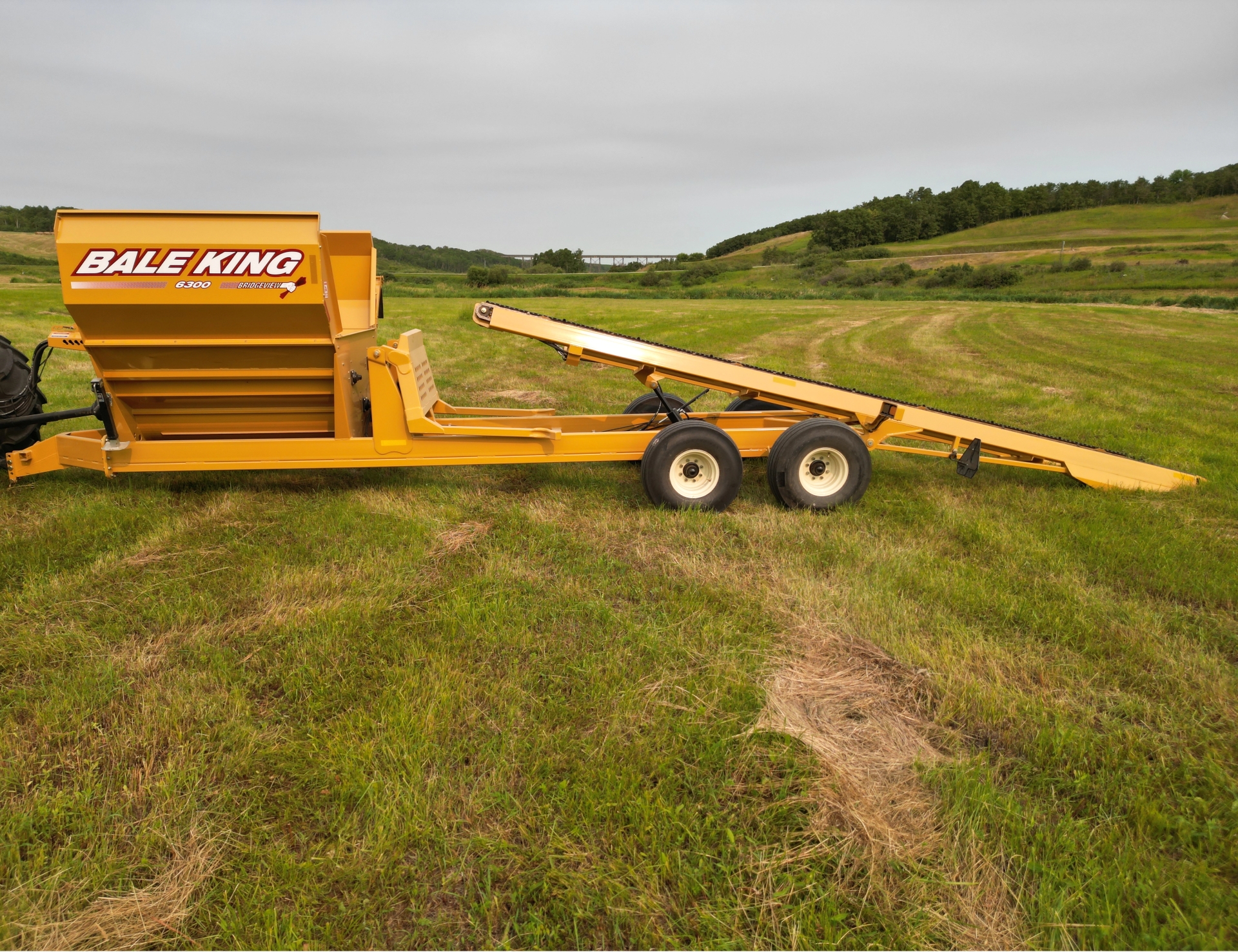

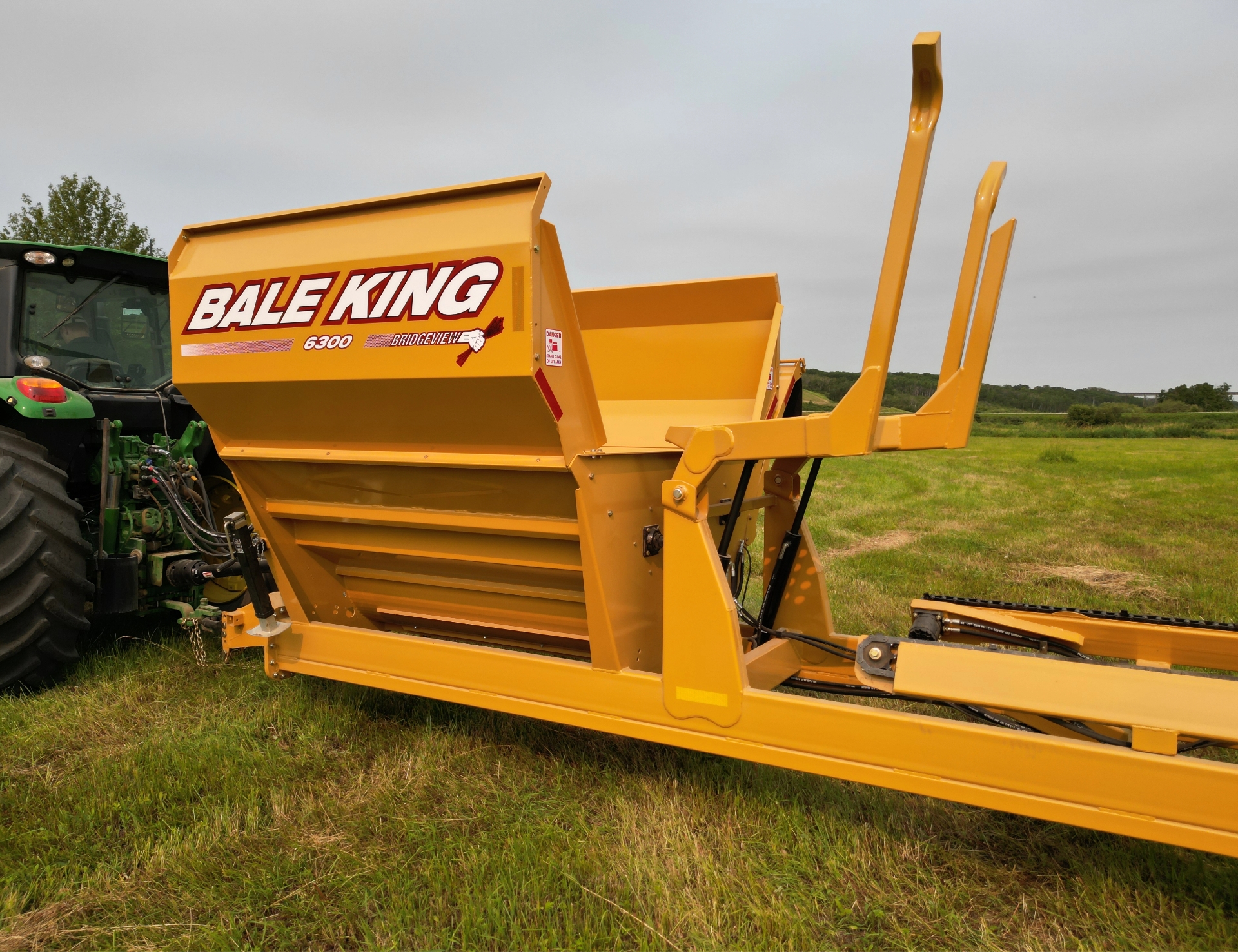

The loading fork transfers the bale from the bale deck to the processing unit. The dedicated fork ensures that all 6 bales are placed in the proper orientation, twines down, in the center of the processing unit.
To load the machine, back under the first 5 bales, flip the front bale into the tub with the fork, and then back under the 6th bale. The whole process takes about 1 minute.

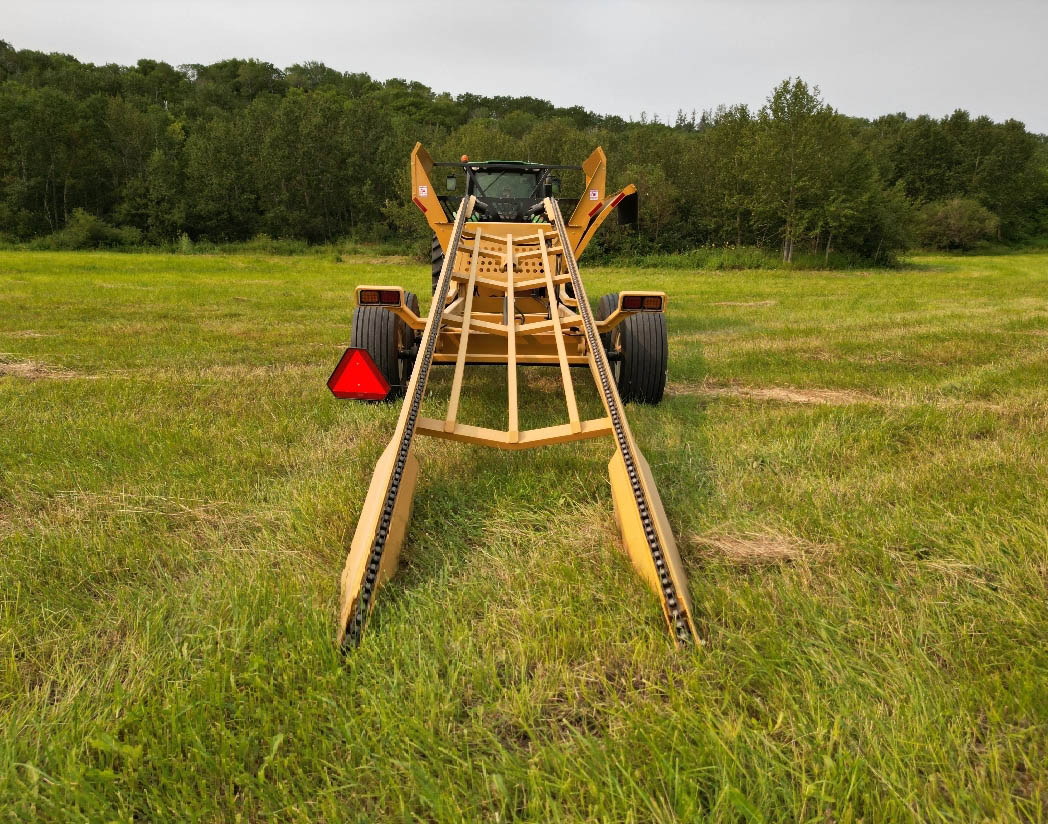

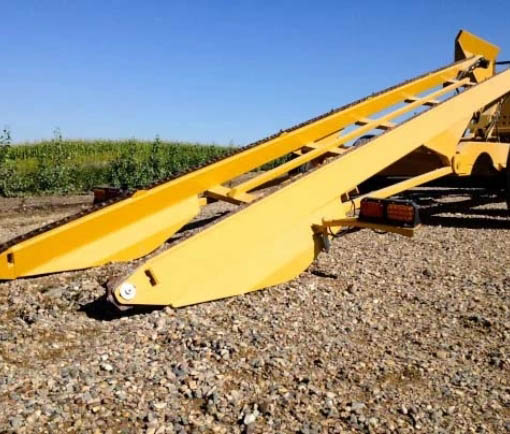

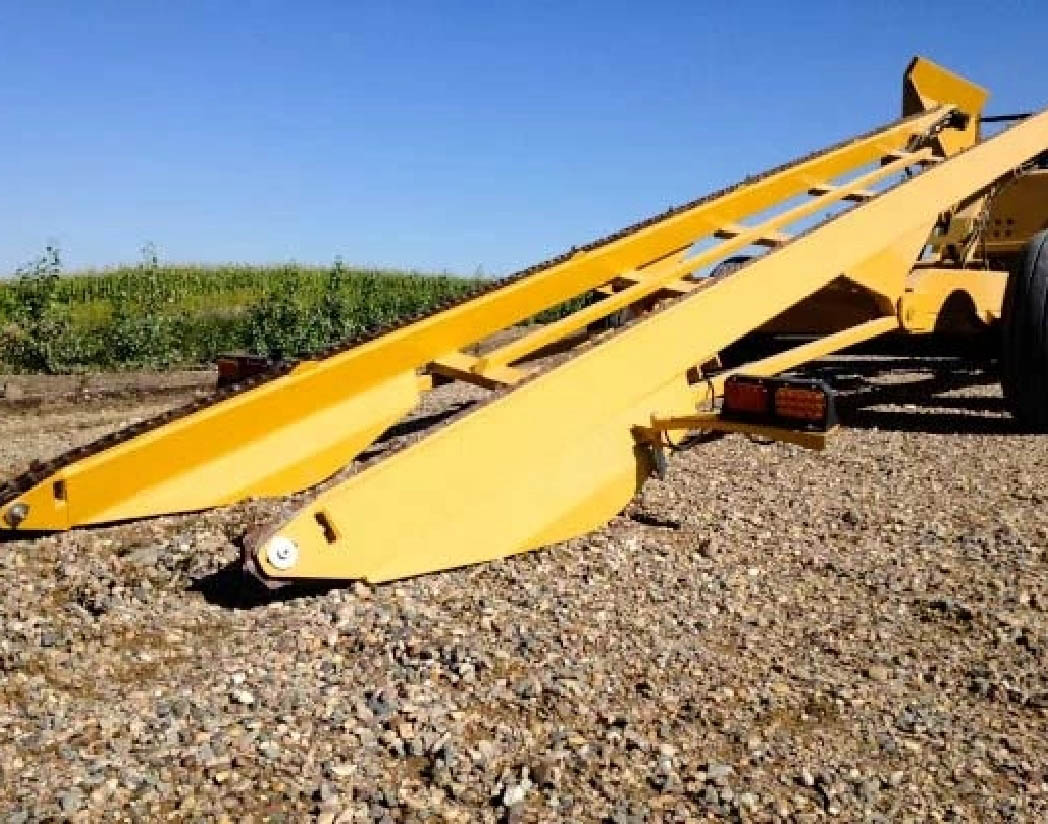

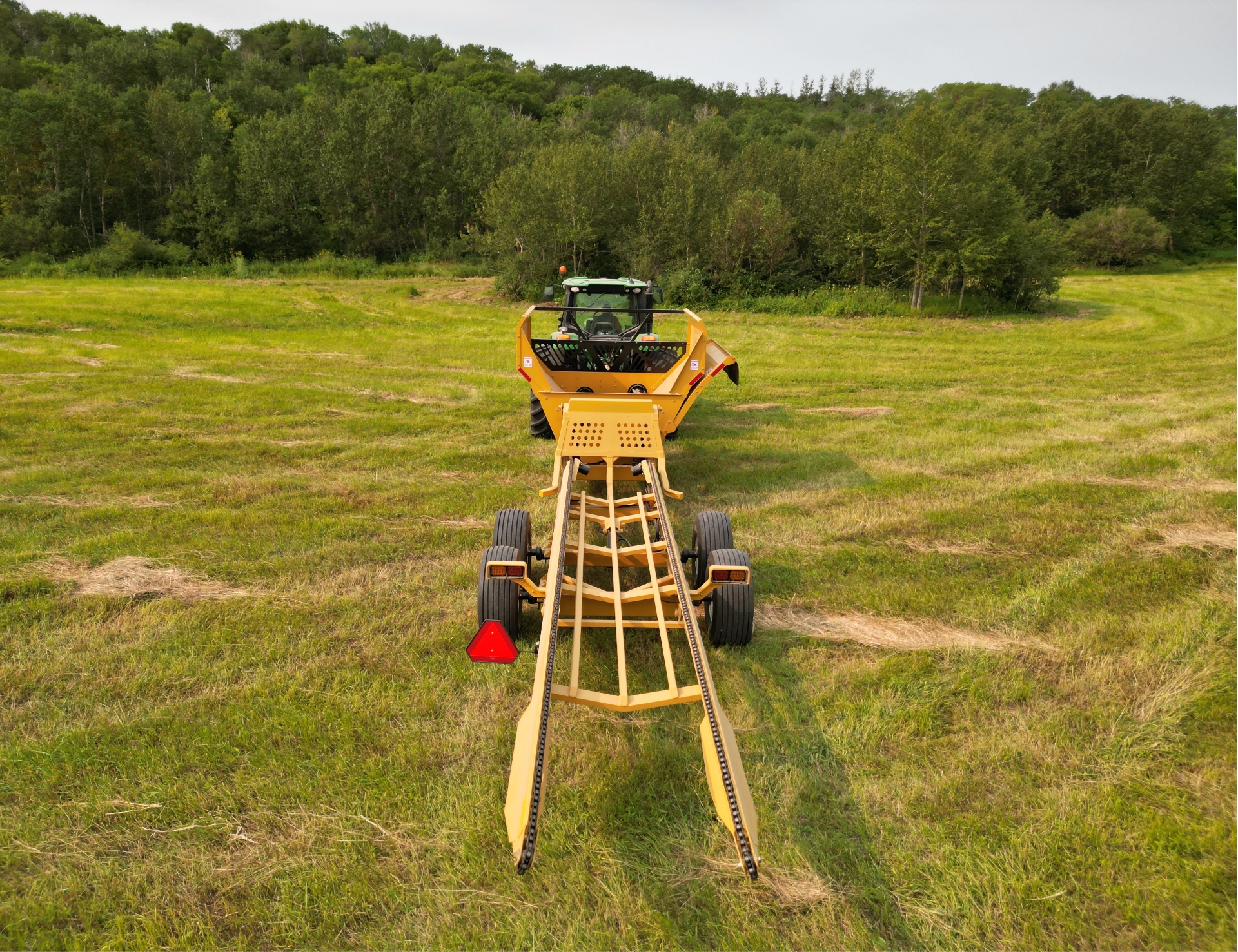

Self-loading, cleated 2082 roller chain grabs hard into straw to load bales. The chain rails are canted inward for a positive grip on various bale sizes and secure transport on the road.
Dual chain drive motors provide the torque required for loading and provide flexibility to reverse for unloading purposes your operation requires.
The idler sprockets employ tapered relief grooves which minimize mud built-up. This feature helps maintain optimal chain tension to reduce maintenance.

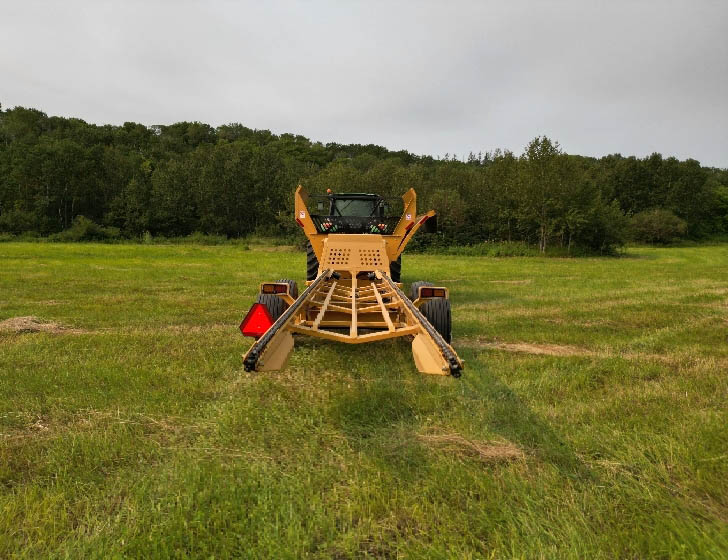

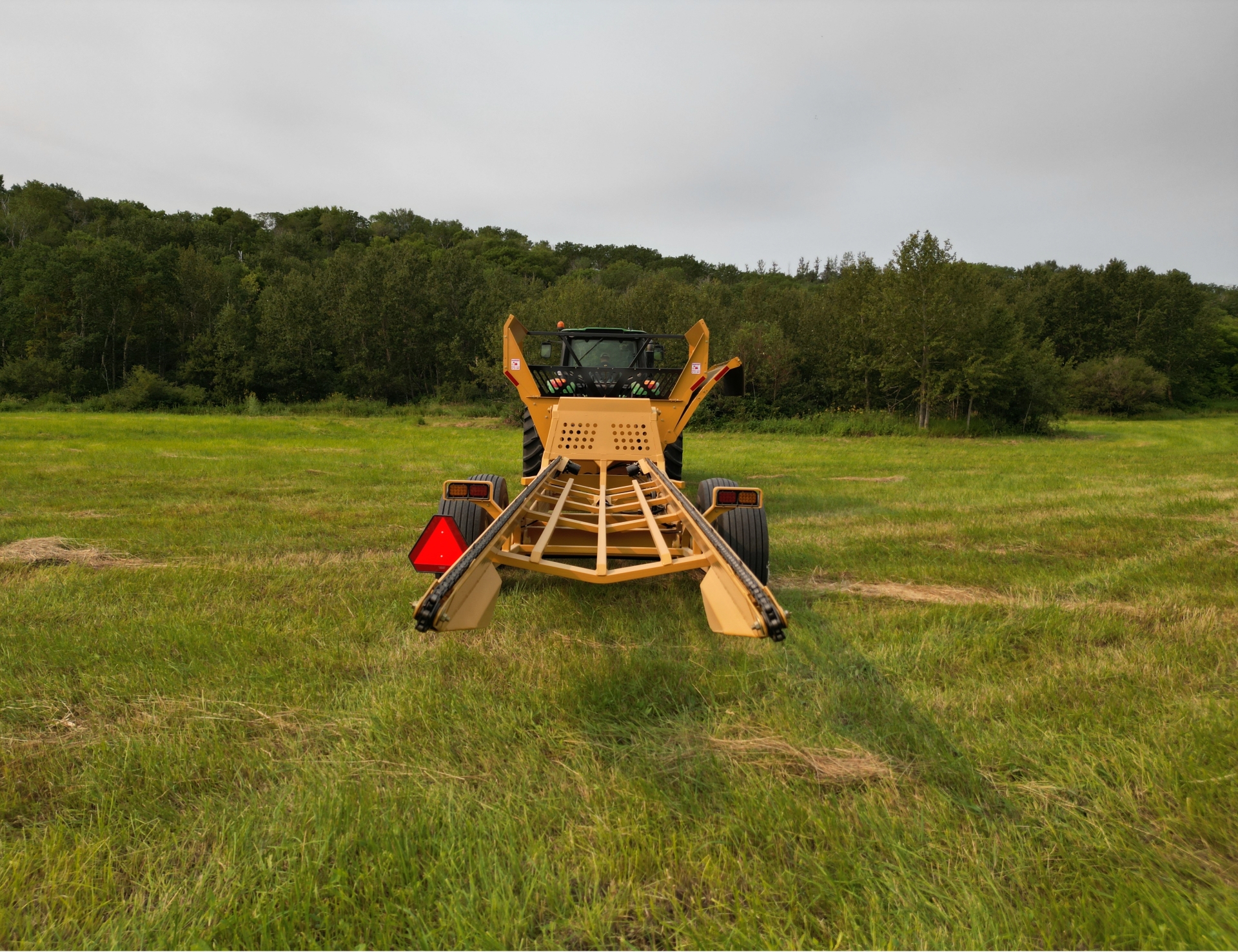

Wide, low profile skid shoes get the chains underneath the bale without digging the sprockets into the ground

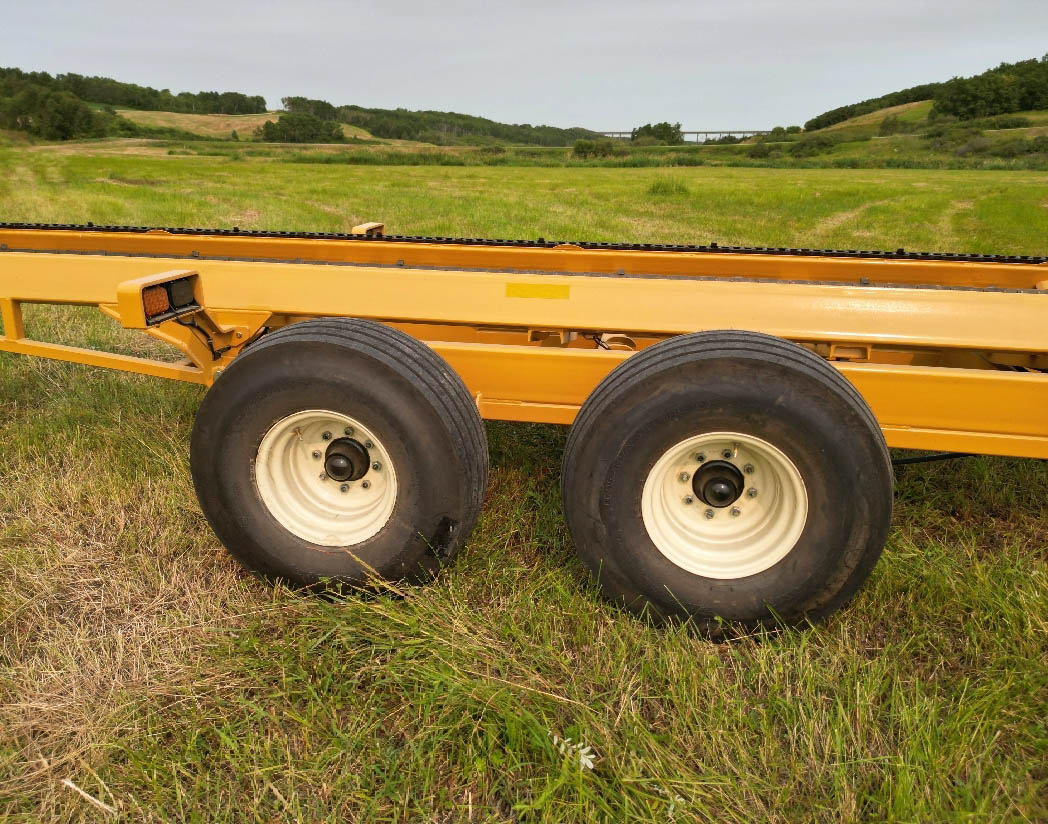

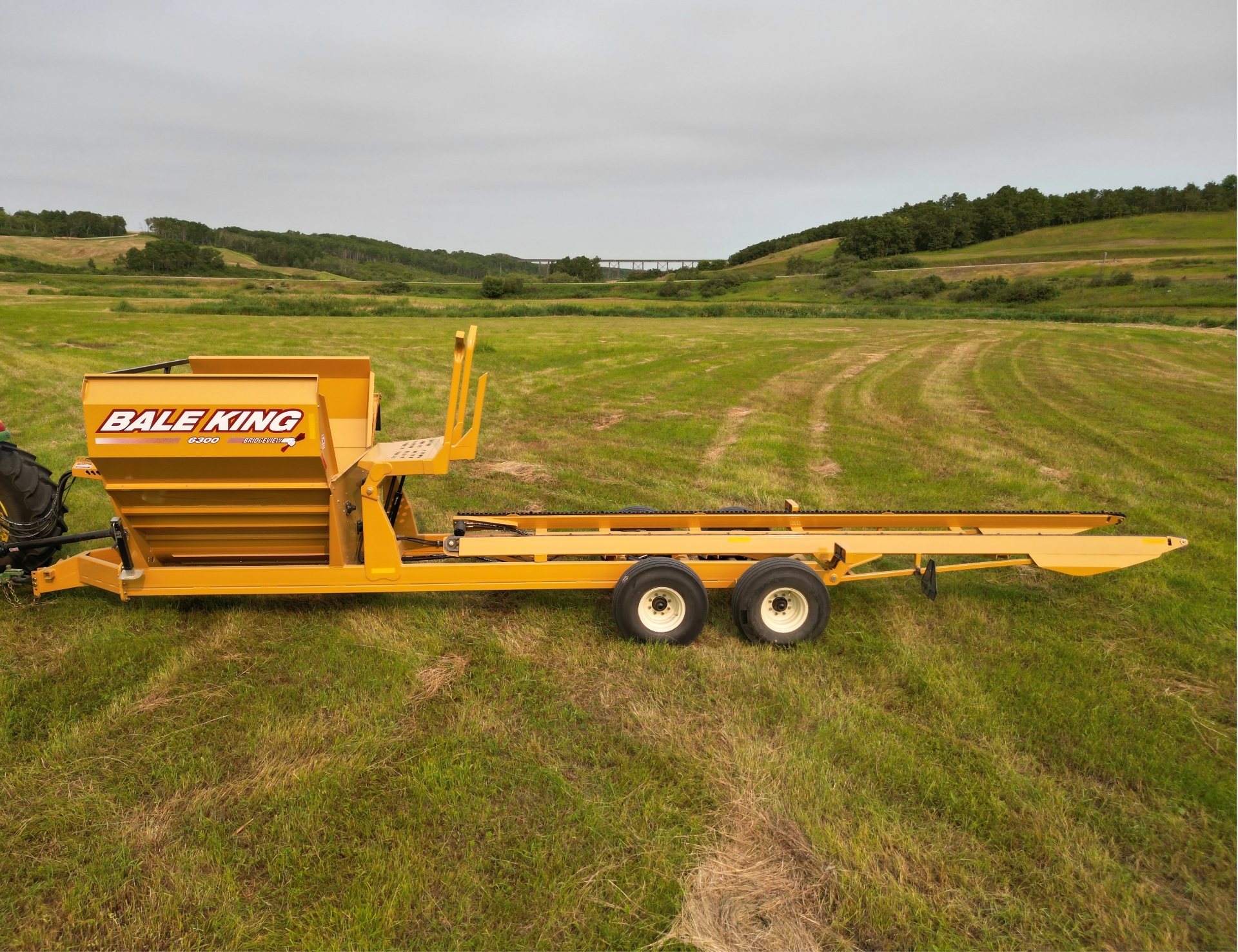

Tandem, 8000lb Torflex axles support the load and provide a smooth ride over rough ground. These axles are extremely low maintenance compared to a walking axle design. There are no pivots to grease or bushings to wear out.
Four large 14Lx16.1 tires provide excellent flotation is soft terrain. It’s built to glide over mud, snow, or delicate meadows.
Twine guards mounted on each spindle keep your wheel bearings running clean.

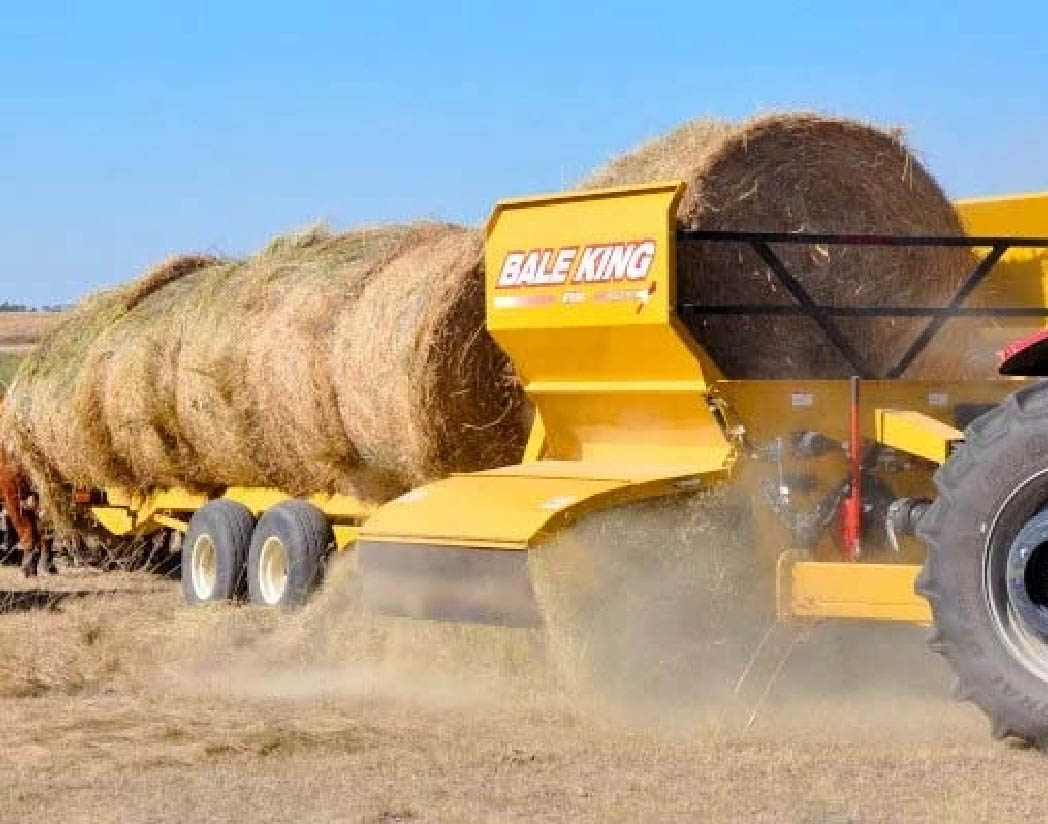

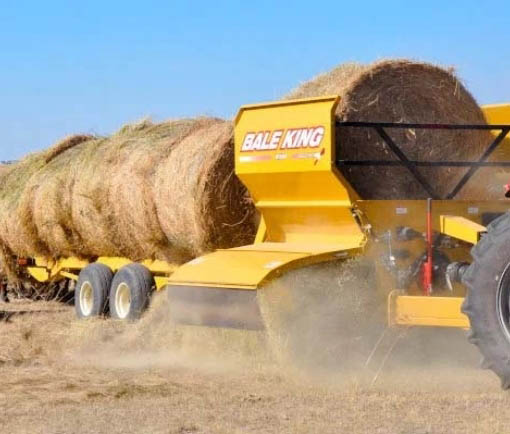

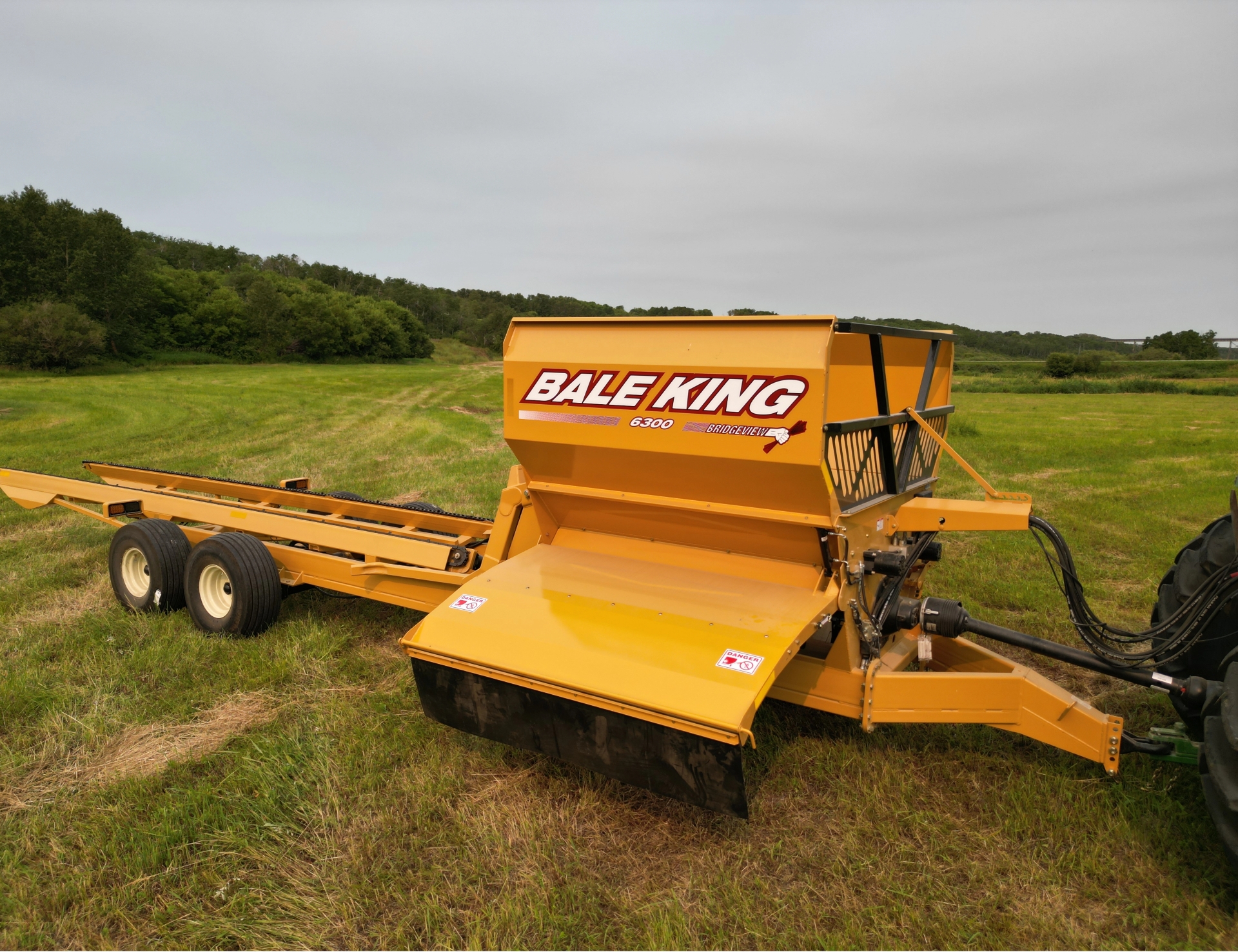

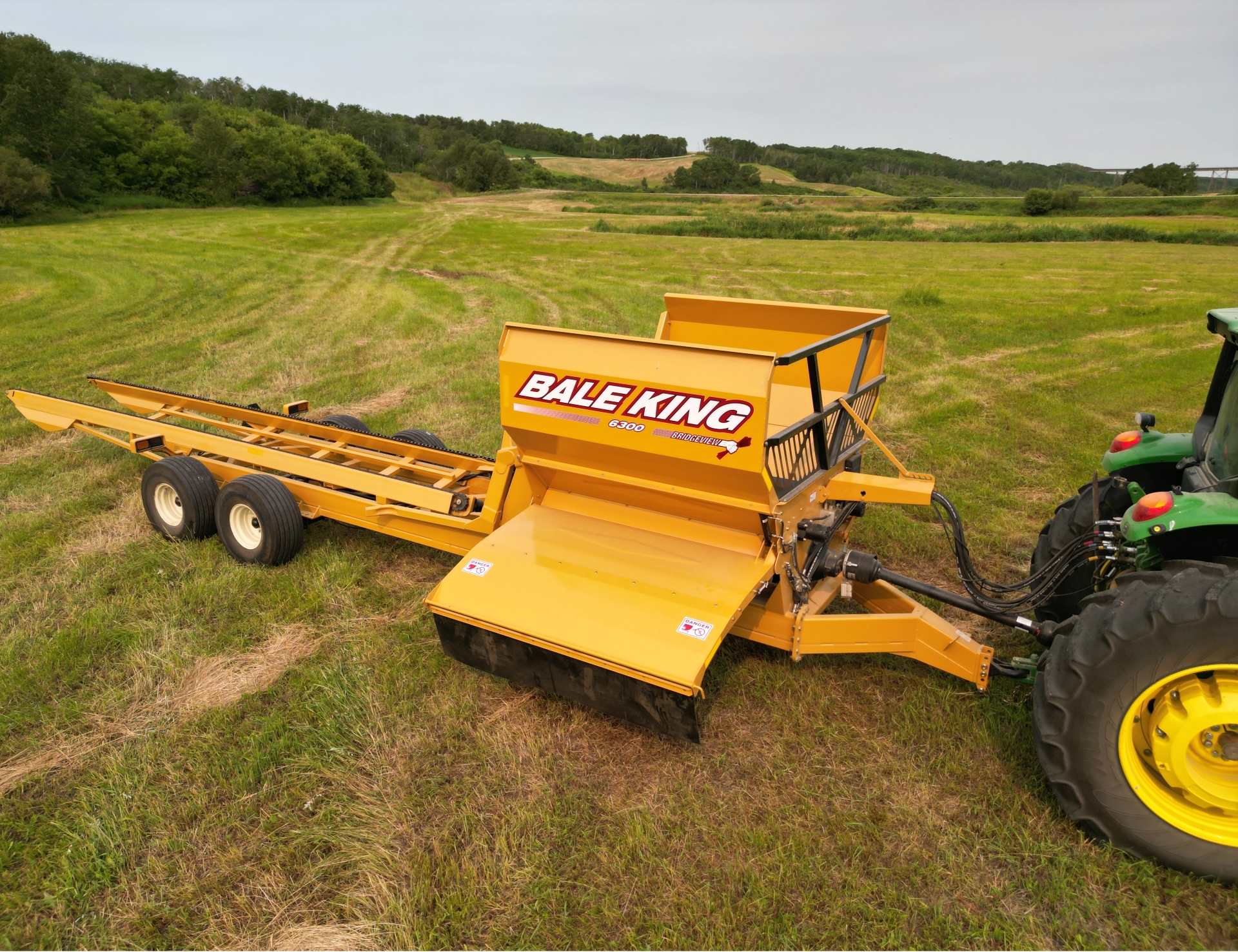

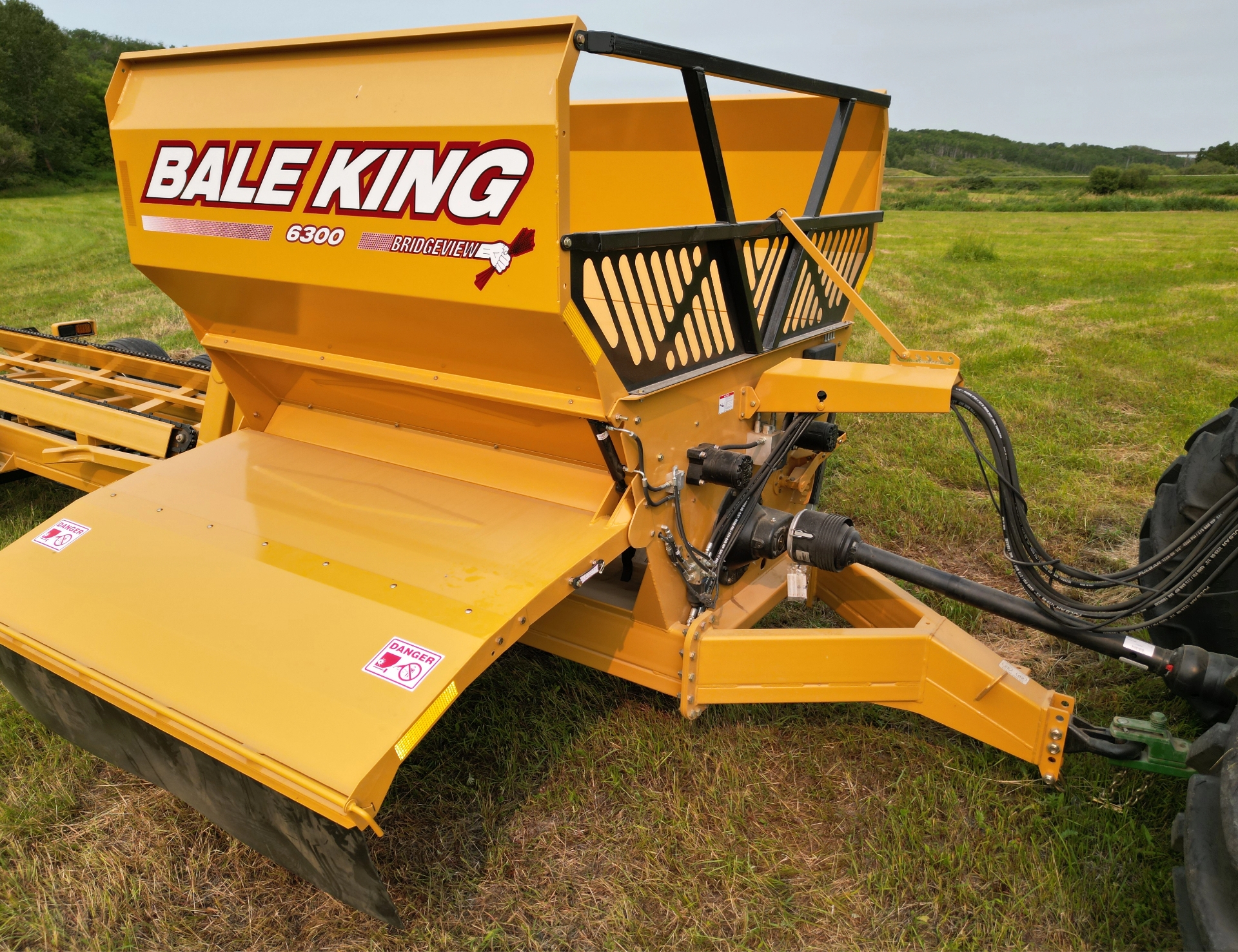

Switch between windrowing / bunk feed to long range bedding without leaving the cab. The standard hydraulic deflector also lets you fold up to fit through narrow gates. Flip up the rubber curtain for precise aim in bedding applications.

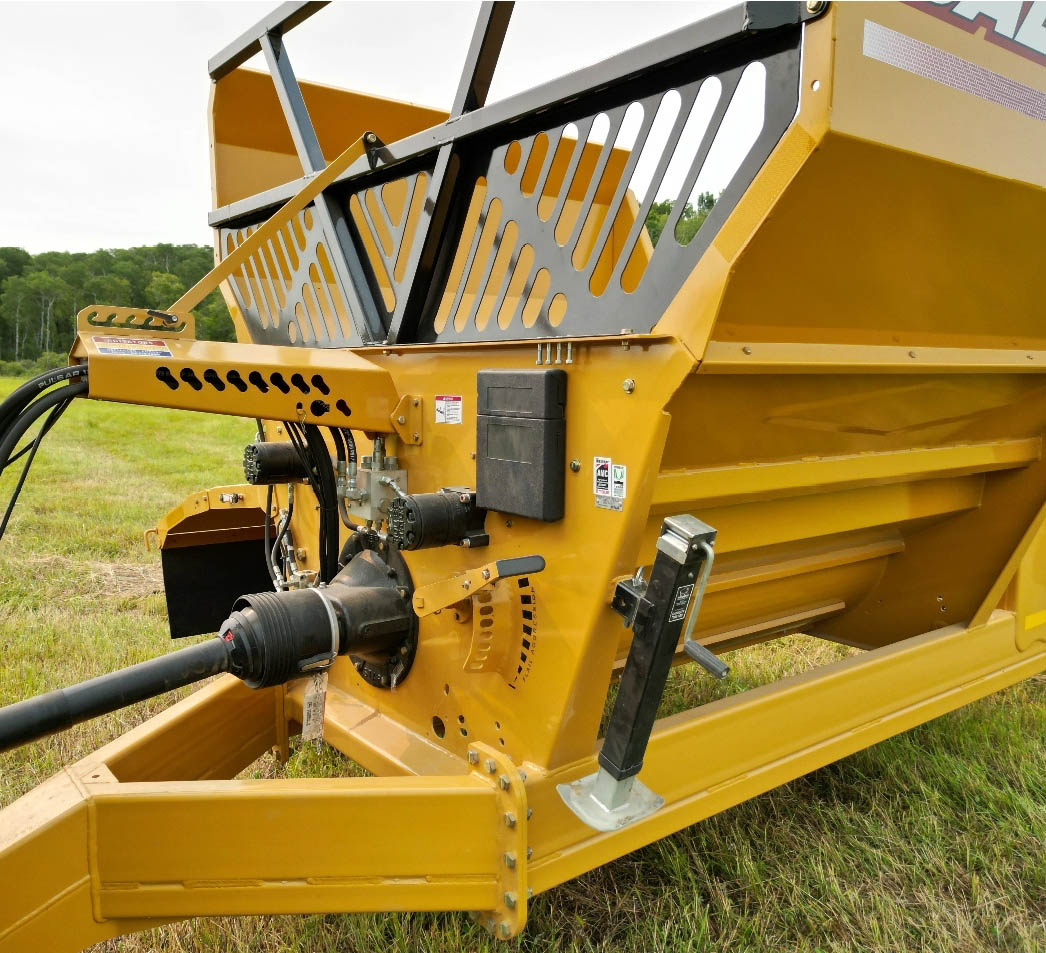

Curved upper shields redirect loose flakes of bale back into the tub while processing
The 6300’s tapered hitch allows tighter turns than possible with a straight hitch. Three clevis positions match your tractor’s hitch height to keep the unit nice and level.
Only 3 hydraulic remotes are needed for full control of the 6300 when used with the provided control box.
Specifications
- Bale Capacity: 6 x 6.5′ (2m) rounds
- PTO: Min. 100HP (73 kw) @ 1000 RPM
- Hydraulic Remotes: 3 Required
- Discharge Distance: Up to 60′ (~18.3m)
- Tires: (4) 14Lx16.1 Flotation
- Powder Coat Finish
- Weight: 9060lb (base machine)
Upgrade Options and Kits

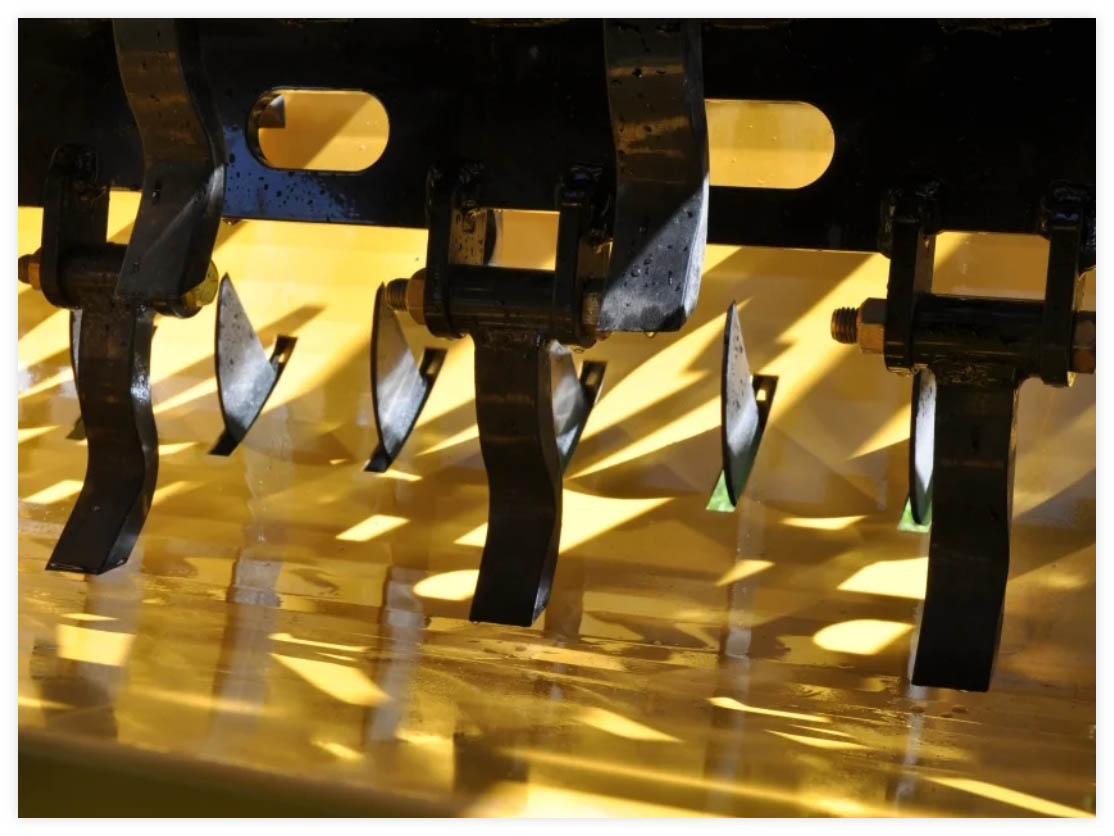

Fine Chop Kit – The Fine Chop Kit adds the ability to chop material even finer.
The kit adds a row of adjustable-height knives with 3 positions: Full height, half height, and fully retracted.
Ideal when processing long greenfeed or silage. No tools required to raise or drop the knives.
This kit can easily be installed by the end user. It is also available as a factory option.

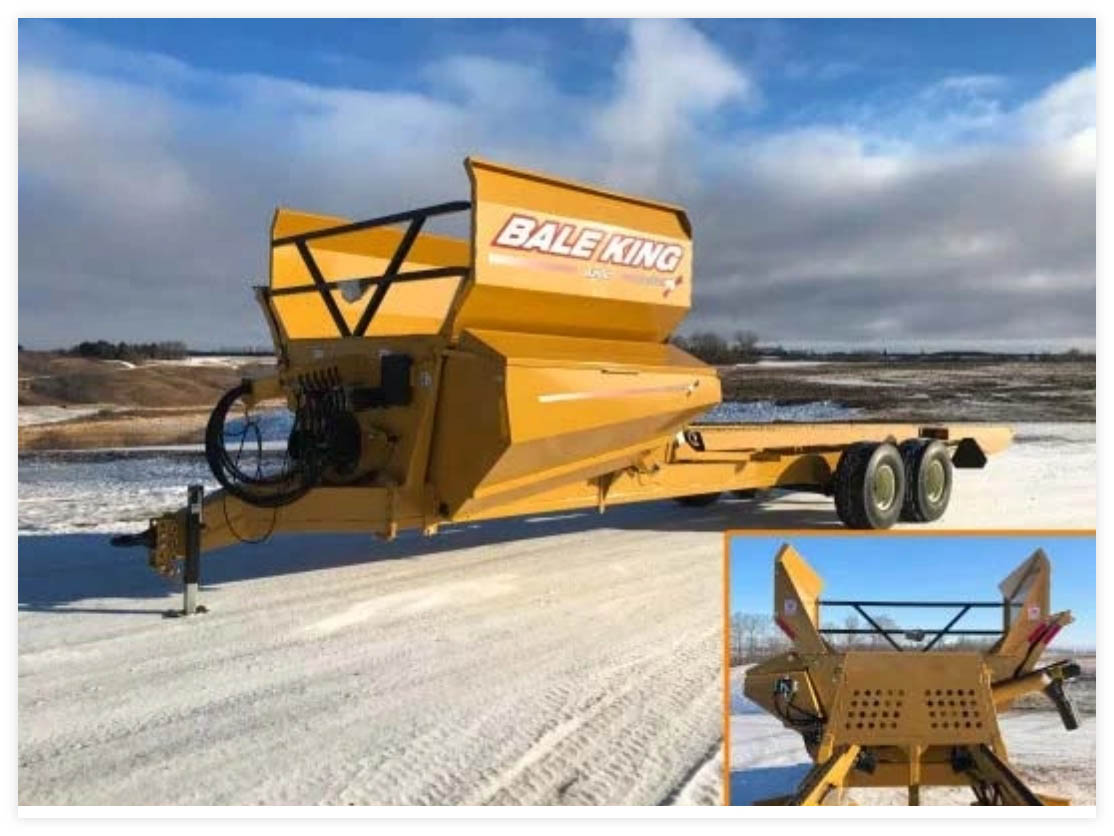

Total Ration Kit – Upgrade your 6300 with a 40 bushel TR kit to feed a Total Ration in One Pass.
This kit is a bolt-on accessory that includes a side-mounted grain tank with a rear discharge auger. Although designed to dispense grain directly onto the processed windrows, the independent hydraulic augers give you the ability fill feed troughs or dispense grain into piles.
Large 6″ augers are suitable for grains and most cubes and the standard flow control valve allows easy ration adjustment.
The low profile tank has a large lid opening for easy filling.
